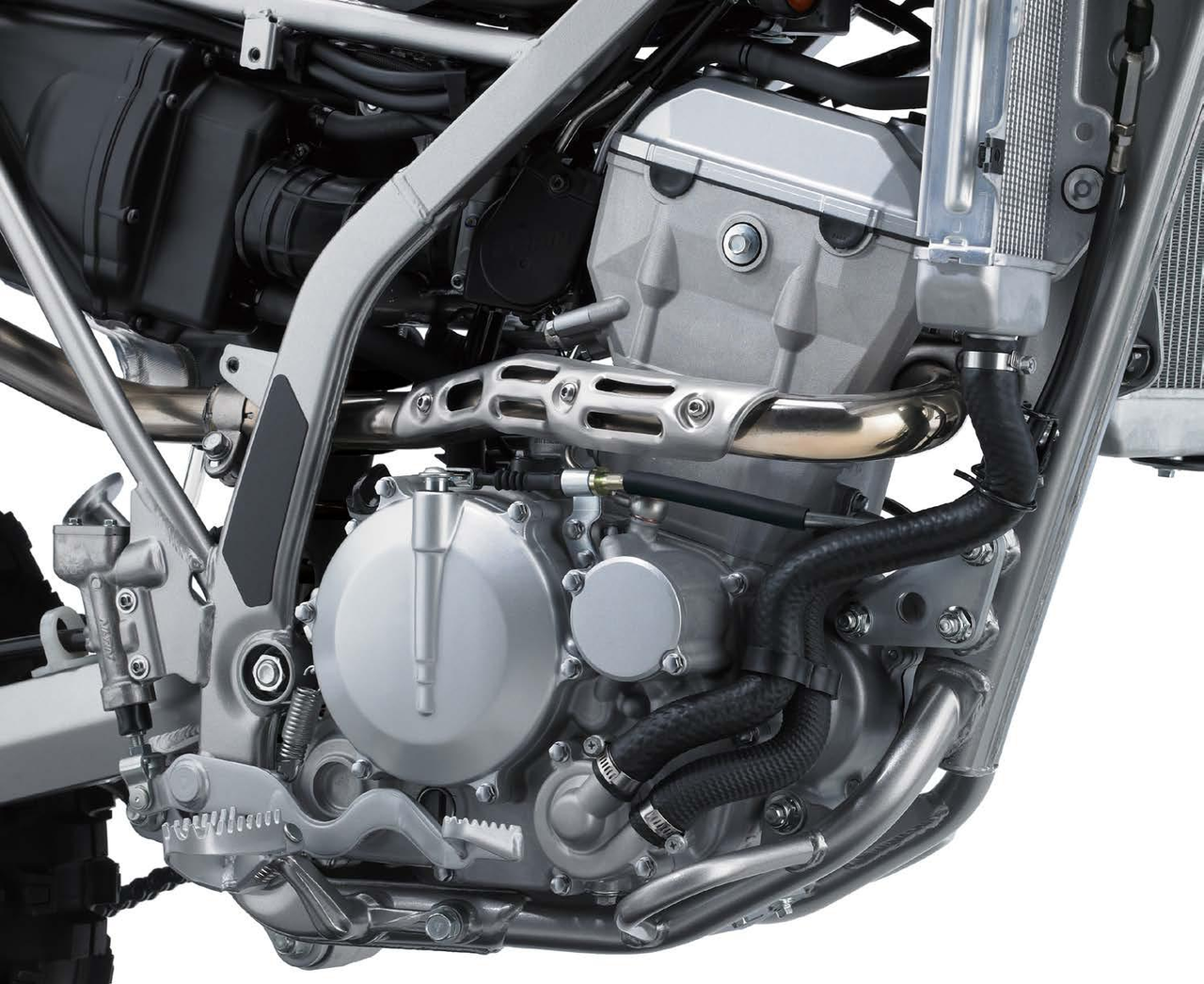

The new 292 cm³ liquid-cooled 4-stroke engine is fuel-injected, delivering crisp response, a quick-revving nature and strong pulling power. Precise control and a strong low-end torque enable riders to tackle tough terrain, while the powerful top-end lets riders keep the KLX300R humming across fast trail sections. Electric start is a welcome feature, ensuring easy access to off-road fun.

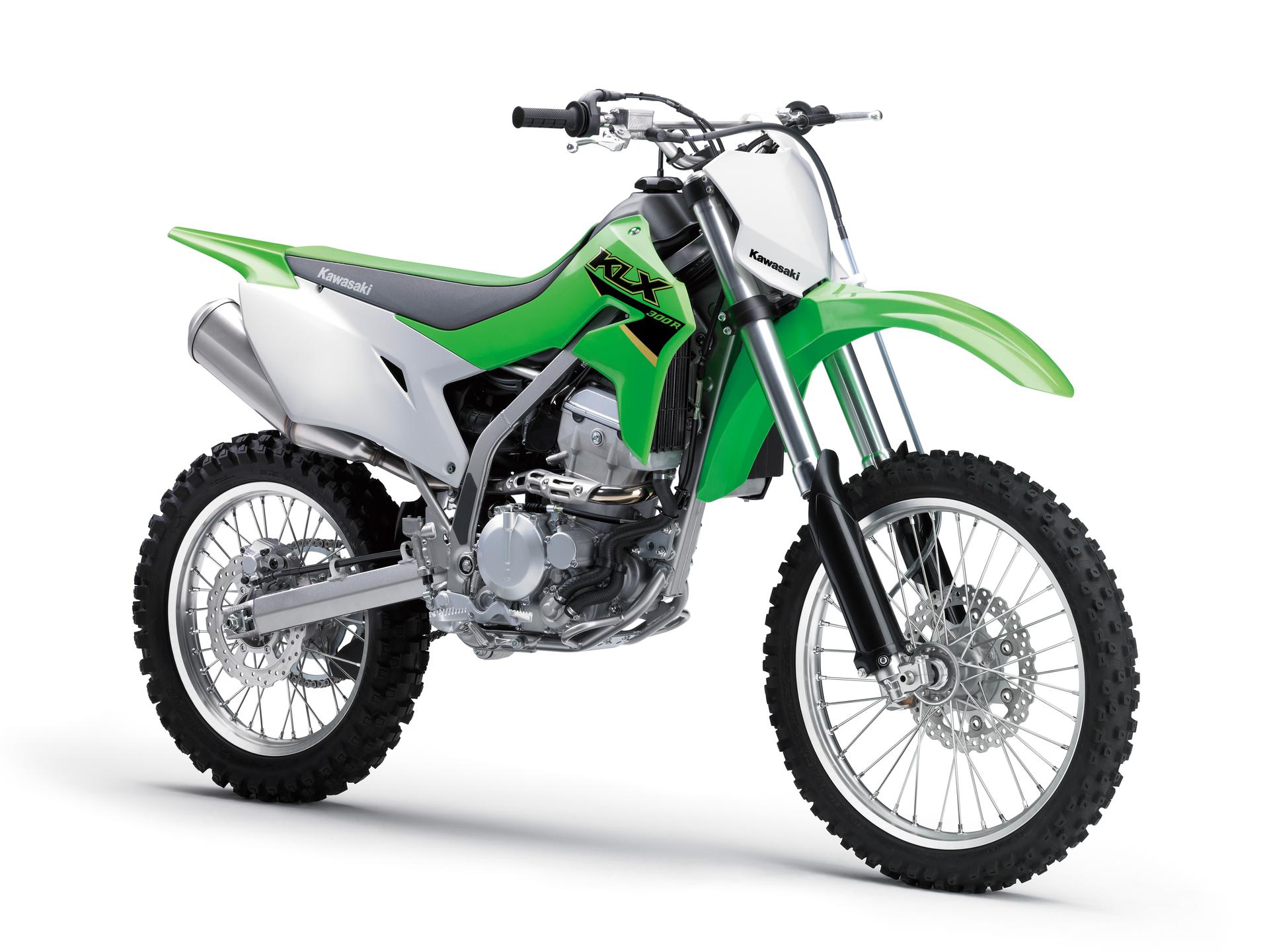

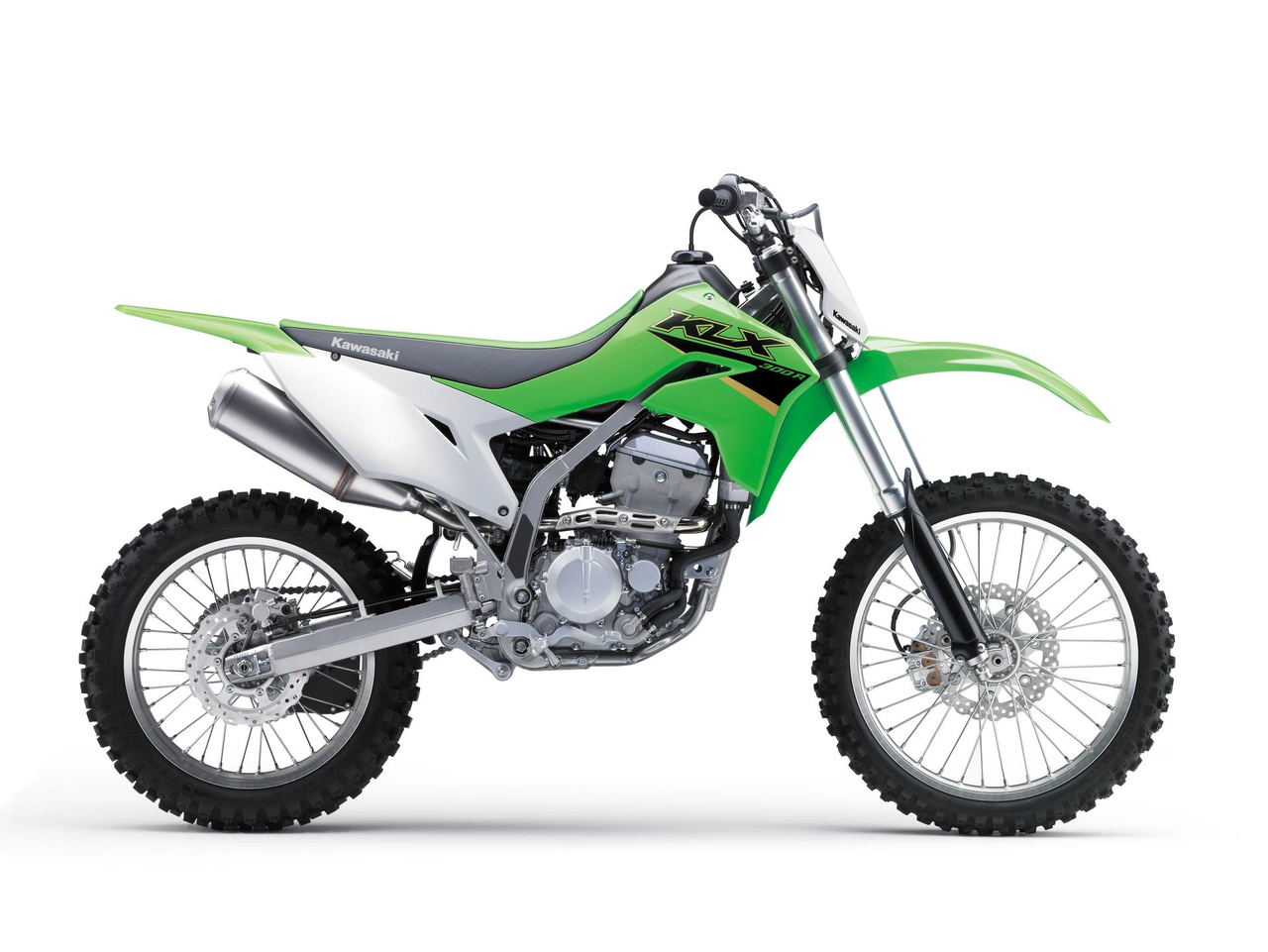

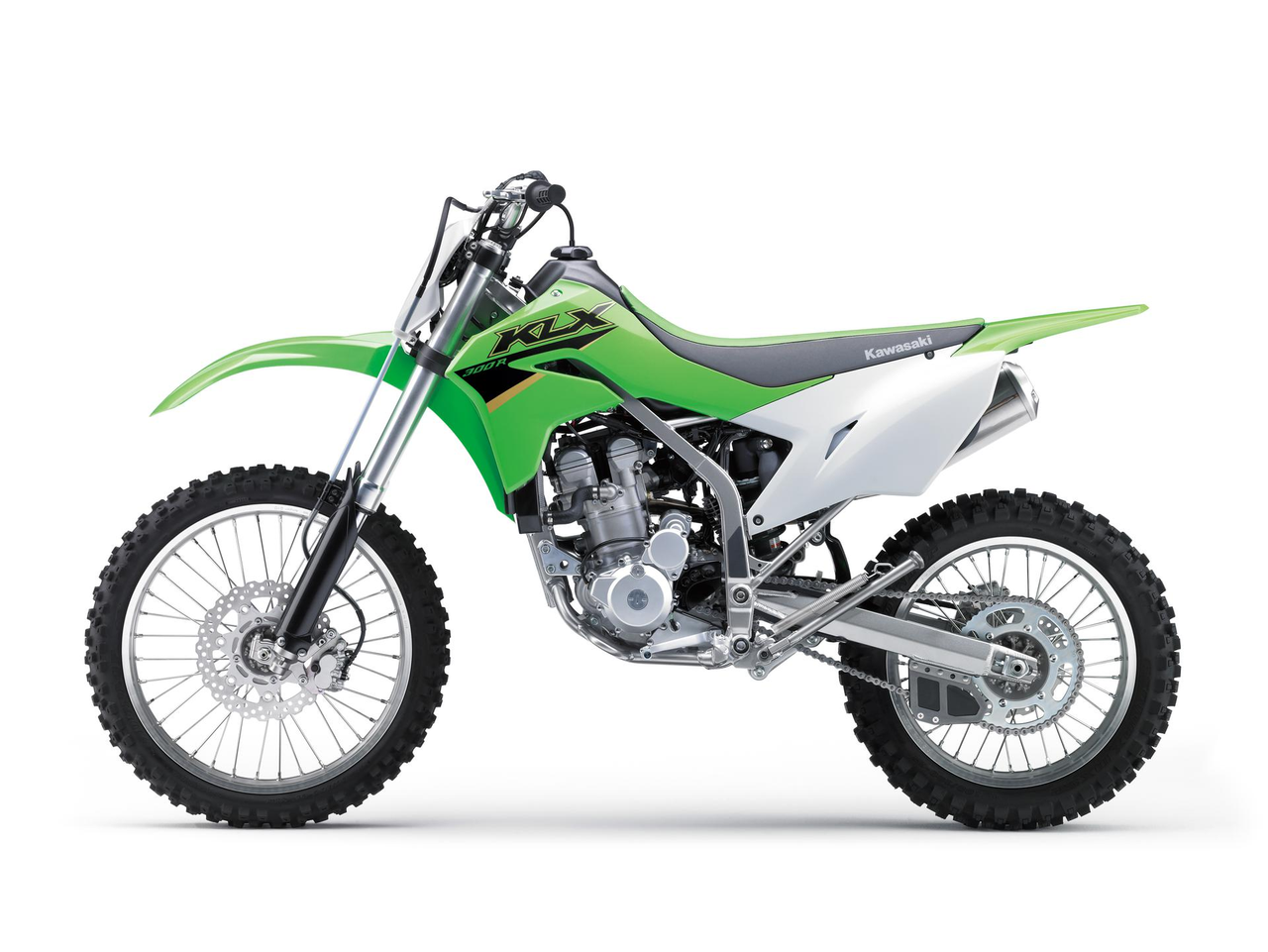

Boasting a lineage that can be traced back to Kawasaki’s enduroracers, this tough and reliable play bike is more than up to the task of a day on the trails. Chassis components selected for their off-road riding potential are complemented by settings chosen to deliver light handling that can be enjoyed by a wide range of riders.
| Engine type | Liquid-cooled, 4-stroke, single-cylinder |
|---|---|
| Compression ratio | 11.1:1 |
| Valve system | DOHC, 4 valves |
| Bore x stroke | 78.0 x 61.2 mm |
| Displacement | 292 cm³ |
| Fuel system | Fuel injection: 34 mm x 1 |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition system | Digital |
| Transmission | 6-speed, return shift |
|---|---|
| Clutch | Wet, multi disc |
| Primary reduction ratio | 2.800 (84/30) |
| Gear ratios 1st | 3.000 (30/10) |
| Gear ratios 2nd | 2.000 (30/15) |
| Gear ratios 3rd | 1.500 (27/18) |
| Gear ratios 4th | 1.250 (25/20) |
| Gear ratios 5th | 1.050 (21/20) |
| Gear ratios 6th | 0.952 (20/21) |
| Final drive | Chain |
| Final reduction ratio | 3.571 (50/14) |
| Frame type | Tubular, semi-double cradle |
|---|---|
| Trail | 109 mm |
| Wheel travel front | 285 mm |
| Wheel travel rear | 285 mm |
| Tyre, front | 80/100-21 51M |
| Tyre, rear | 100/100-18 59M |
| L x W x H | 2,120 x 825 x 1,250 mm |
| Steering angle L/R | 45° / 45° |
| Wheel base | 1,435 mm |
| Ground clearance | 305 mm |
| Fuel capacity | 7.9 litres |
| Seat height | 925 mm |
| Curb mass | 128 kg |
| Front brake type | Single semi-floating petal disc |
|---|---|
| Front brake diameter | Ø 270 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Single petal disc |
| Rear brake diameter | Ø 240 mm |
| Rear brake caliper type | Single-piston |
| Front suspension type | Telescopic fork |
| Front suspension diameter | Ø 43 mm |
| Rear suspension type | Uni-Trak swingarm |
