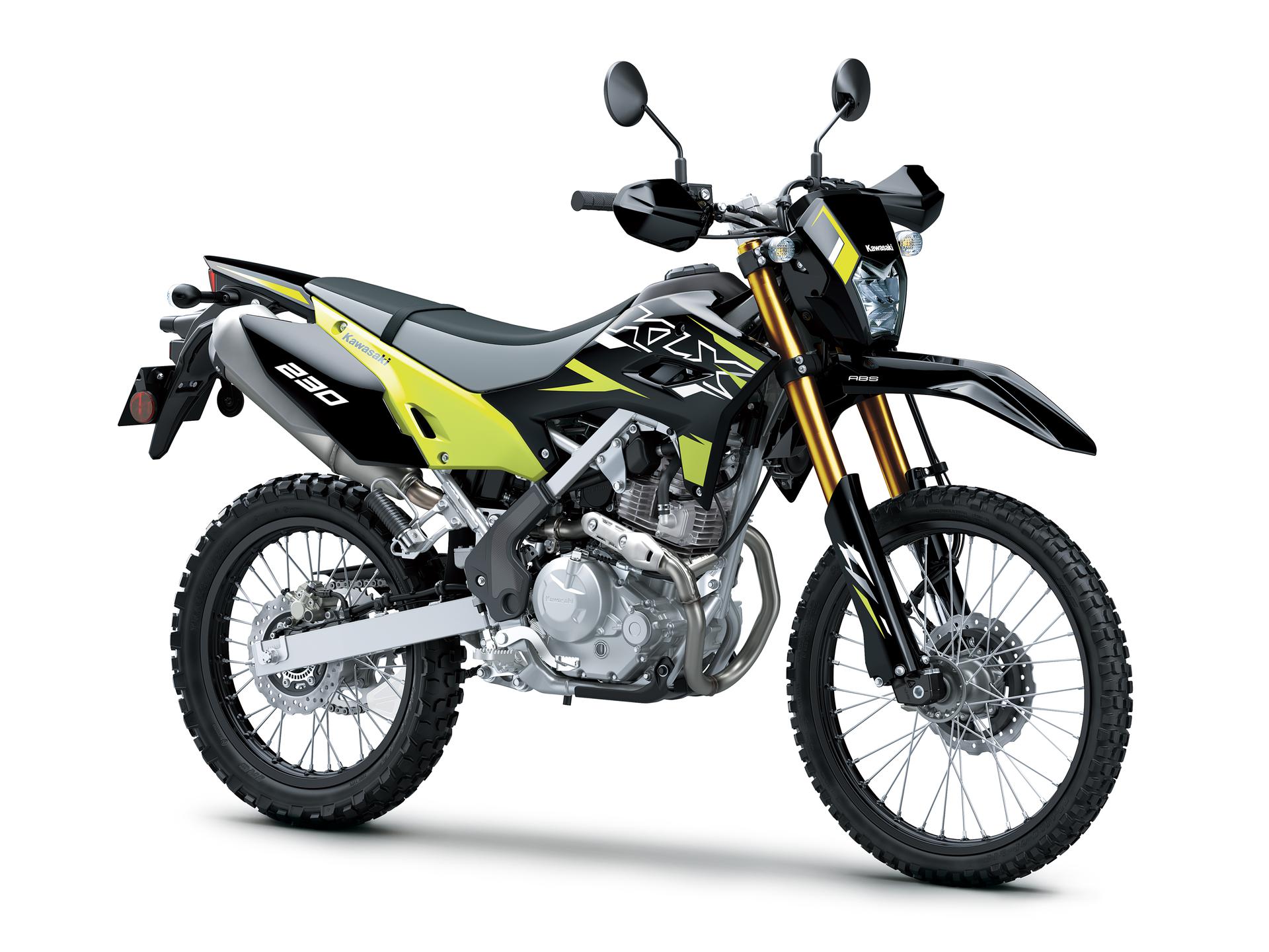

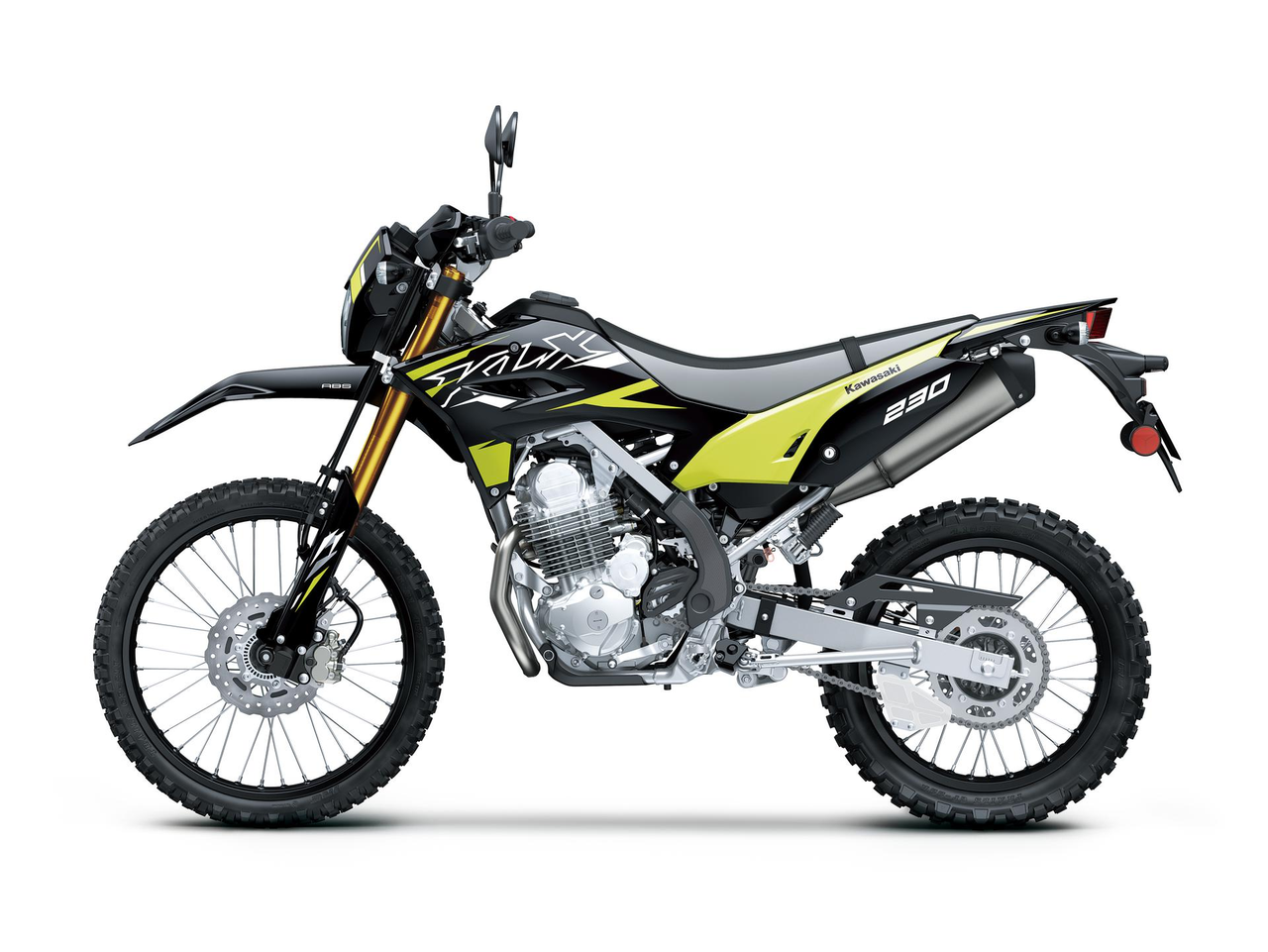

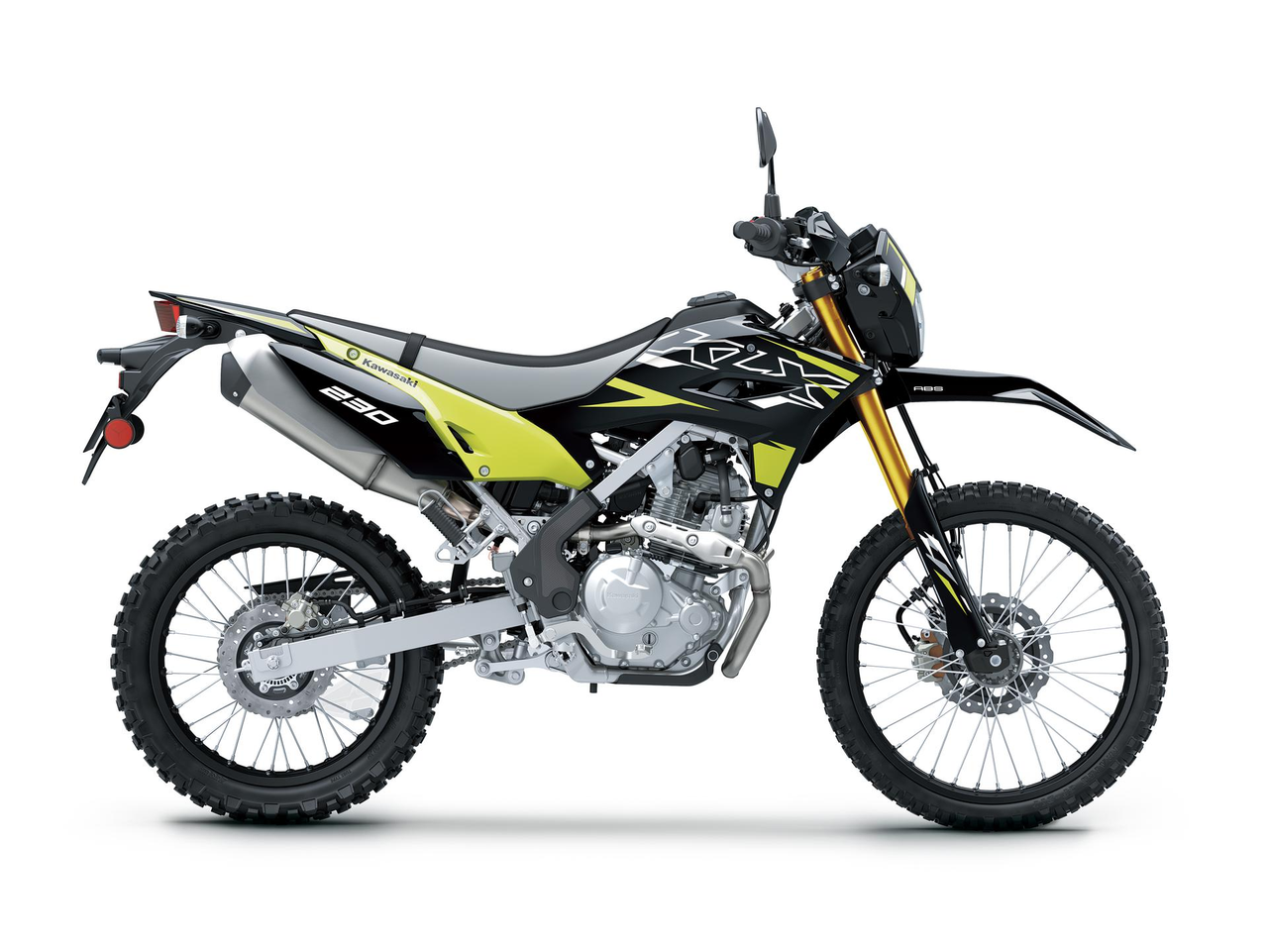

The KLX230 SE, with original colour and graphics, inverted front fork and a number of accessories fit standard, is also available. The 2024 model offers longer rear wheel travel and a thicker seat for increased comfort, while also offering a lower seat height.

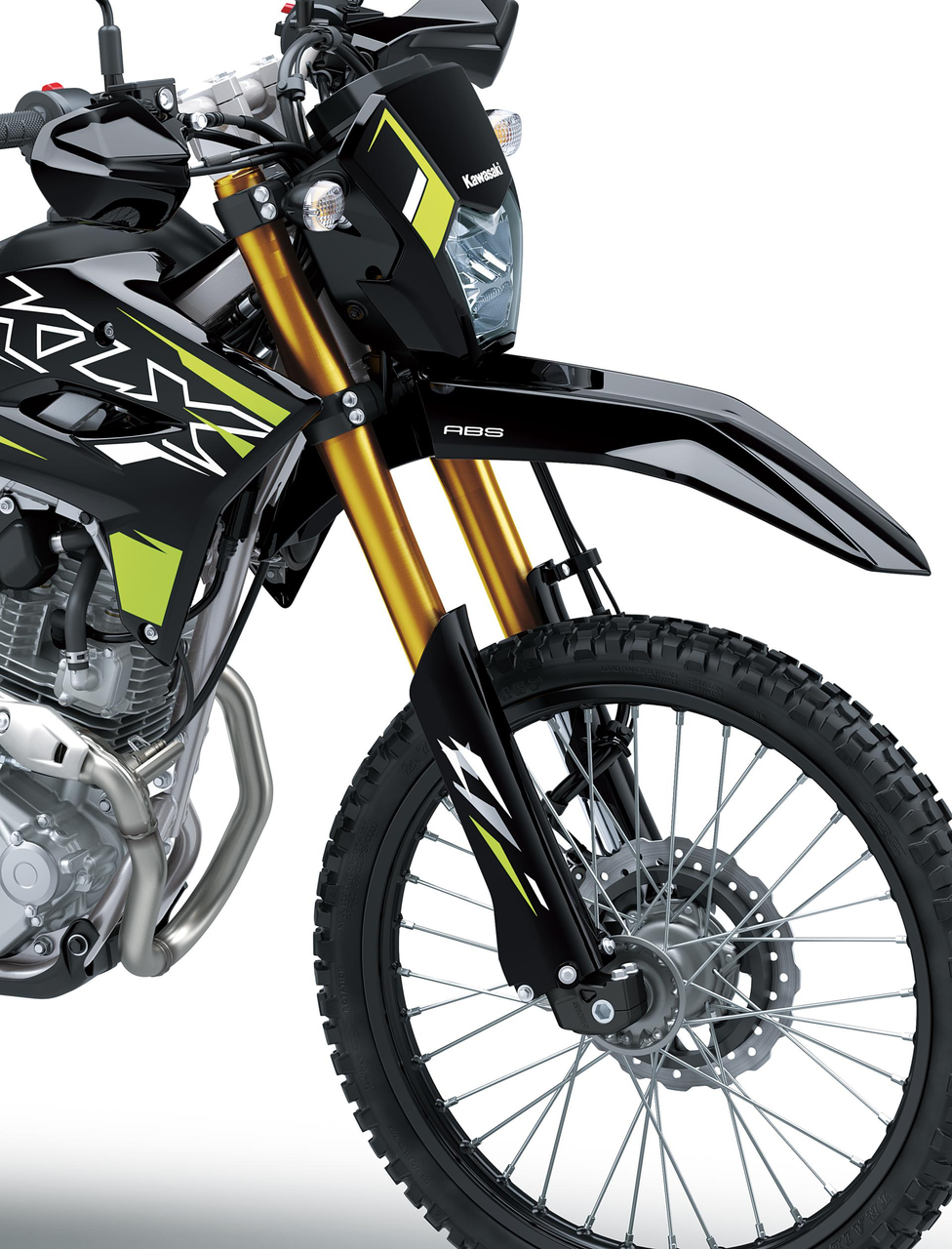

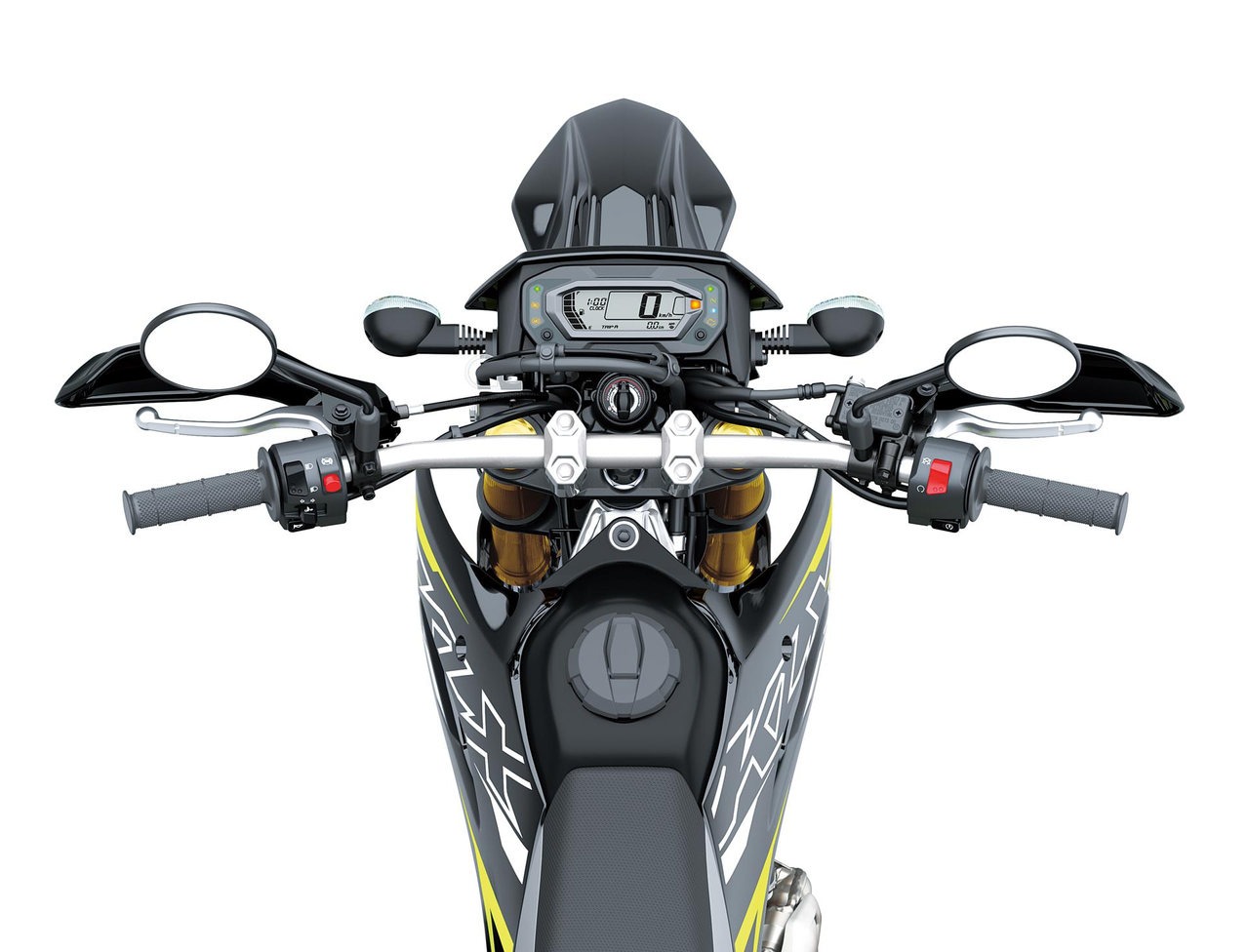

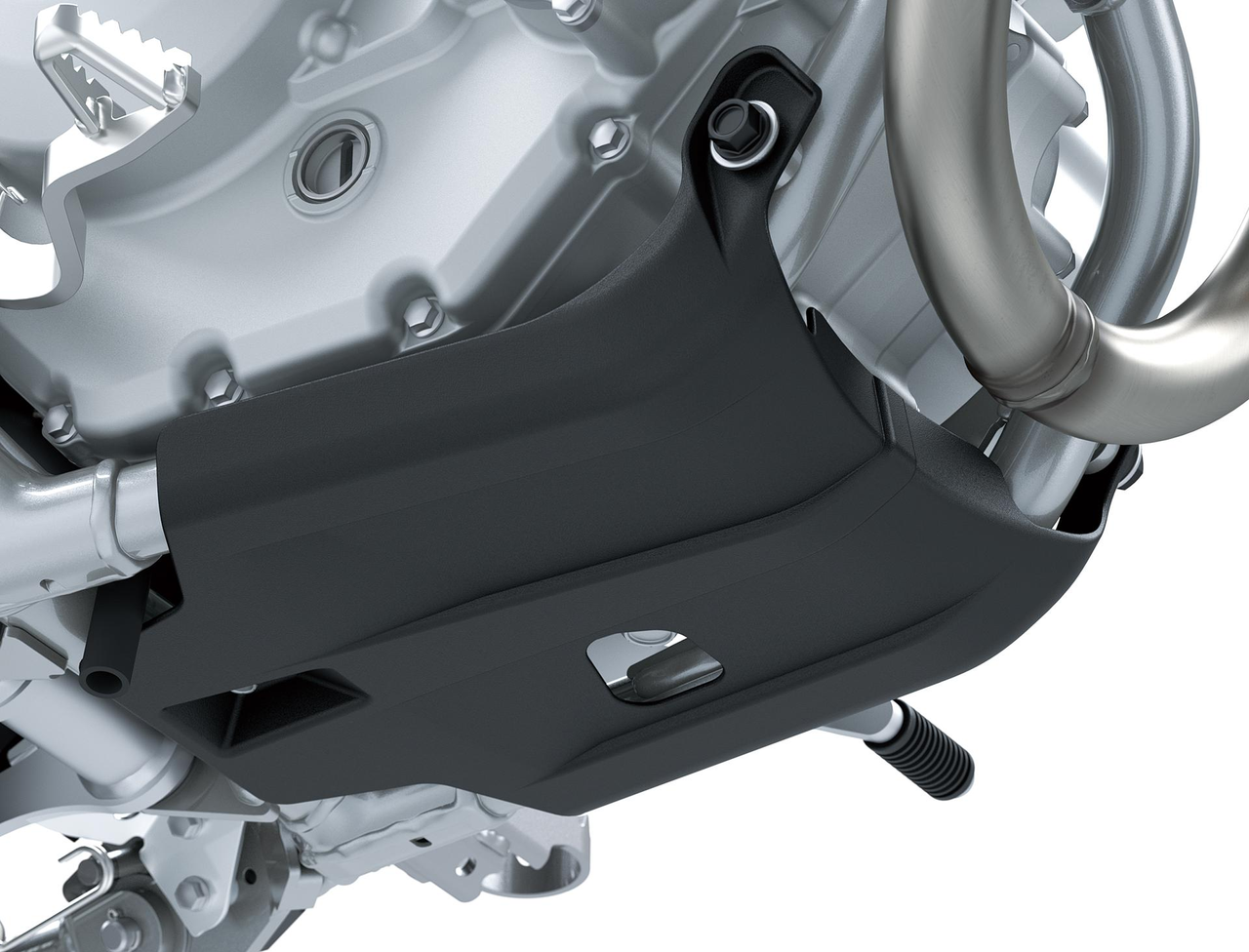

In addition to the inverted front fork, numerous accessories are fit standard, including hand covers, a fat-type handlebar, black alumite rims, frame covers and a skid plate.
Thanks to the new rear sub-frame, the rear wheel travel could be increased to 250 mm, while also offering a thicker seat and a lower (875 mm) seat height.
Kawasaki’s ABS system for dual-purpose use, specially developed for this model, was carefully tuned to enable both on-road and off-road use. Designed to assist riders to stop effectively in a short distance, the ABS offers additional reassurance to riders when riding on a low-friction surface. Riders can opt to disable the ABS function according to their preference when riding off-road.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
| Engine type | Air-cooled, 4-stroke, single-cylinder |
|---|---|
| Compression ratio | 9.4:1 |
| Valve system | SOHC, 2 valves |
| Bore x stroke | 67.0 x 66.0 mm |
| Displacement | 233 cm³ |
| Fuel system | Fuel injection: 32 mm x 1 |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition system | Digital |
| Maximum power | 13.2 kW {18 PS} / 8,000 rpm |
|---|---|
| Maximum torque | 18.0 N•m {1.8 kgf•m} / 6,400 rpm |
| Transmission | 6-speed, return shift |
| Clutch | Wet, multi disc |
| Primary reduction ratio | 2.871 (89/31) |
| Gear ratios 1st | 3.000 (39/13) |
| Gear ratios 2nd | 2.067 (31/15) |
| Gear ratios 3rd | 1.556 (28/18) |
| Gear ratios 4th | 1.261 (29/23) |
| Gear ratios 5th | 1.040 (26/25) |
| Gear ratios 6th | 0.852 (23/27) |
| Final drive | Chain |
| Final reduction ratio | 2.857 (40/14) |
| Frame type | Tubular, semi-double cradle |
|---|---|
| Trail | 101 mm |
| Wheel travel front | 240 mm |
| Wheel travel rear | 250 mm |
| Tyre, front | 2.75-21 45P |
| Tyre, rear | 4.10-18 59P |
| L x W x H | 2,110 x 935 x 1,185 mm |
| Steering angle L/R | 45° / 45° |
| Wheel base | 1,380 mm |
| Ground clearance | 260 mm |
| Fuel capacity | 7.5 litres |
| Seat height | 875 mm |
| Curb mass | 135 kg |
| Front brake type | Single petal disc |
|---|---|
| Front brake diameter | Ø 265 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Single petal disc |
| Rear brake diameter | Ø 220 mm |
| Rear brake caliper type | Single-piston |
| Front suspension type | Telescopic fork |
| Front suspension diameter | Ø 37 mm |
