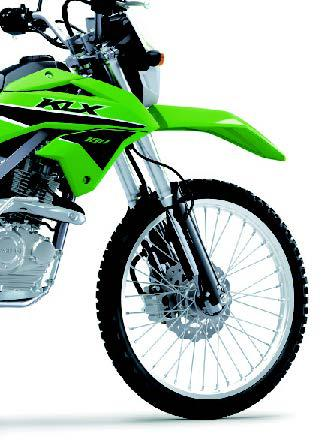

The front wheel travel range hasbeen increased to enhance handlingcapability while maintainingexcellent manoeuvrability and highrigidity. For the shock absorbers, the specifi cations of the dust seals have been changed to prevent dust penetration.

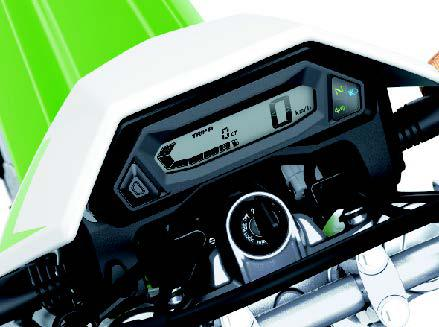

Newly developed full LCDdigital instrumentationwith excellent visibilityand compact design hasbeen added.

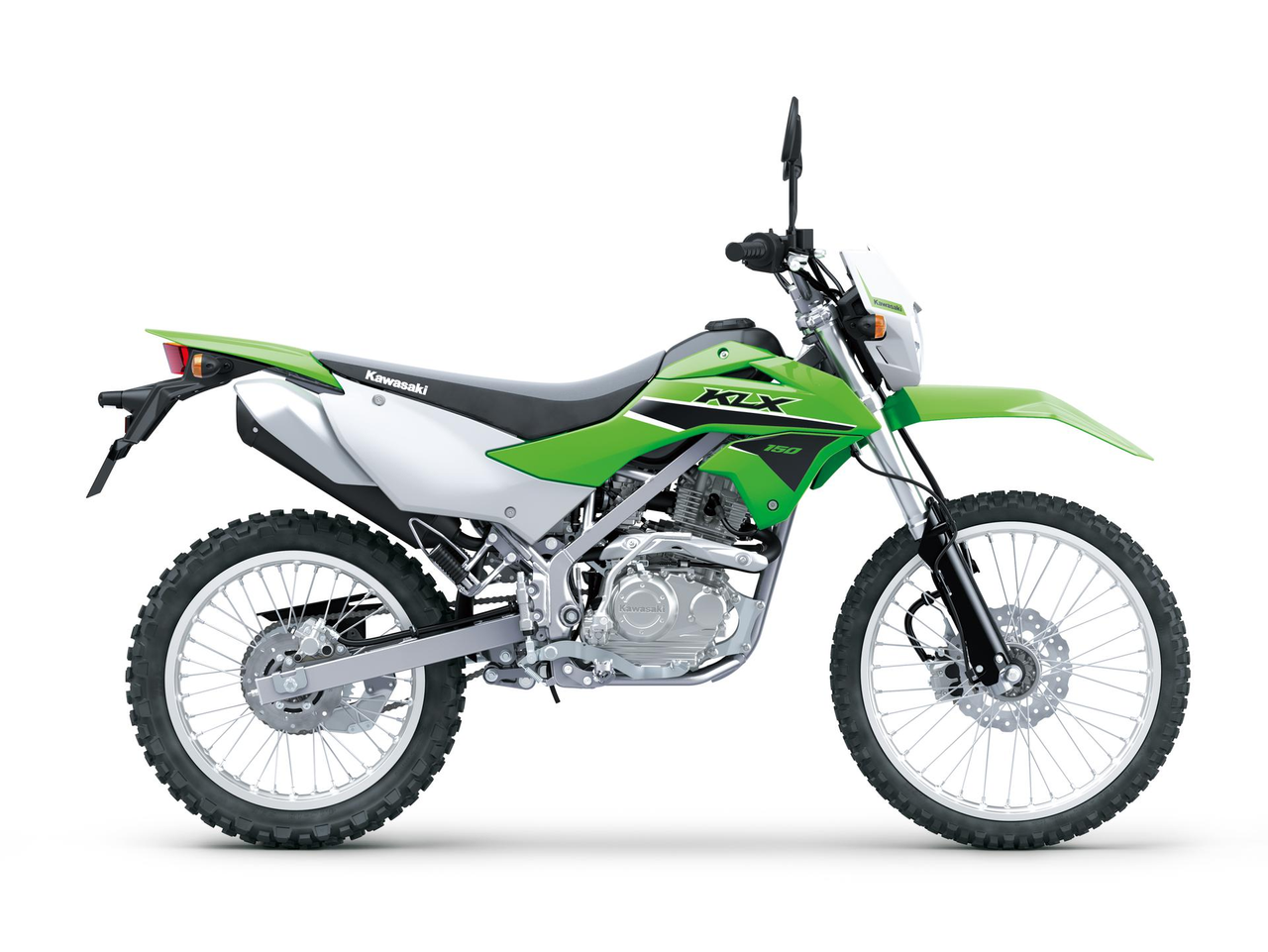

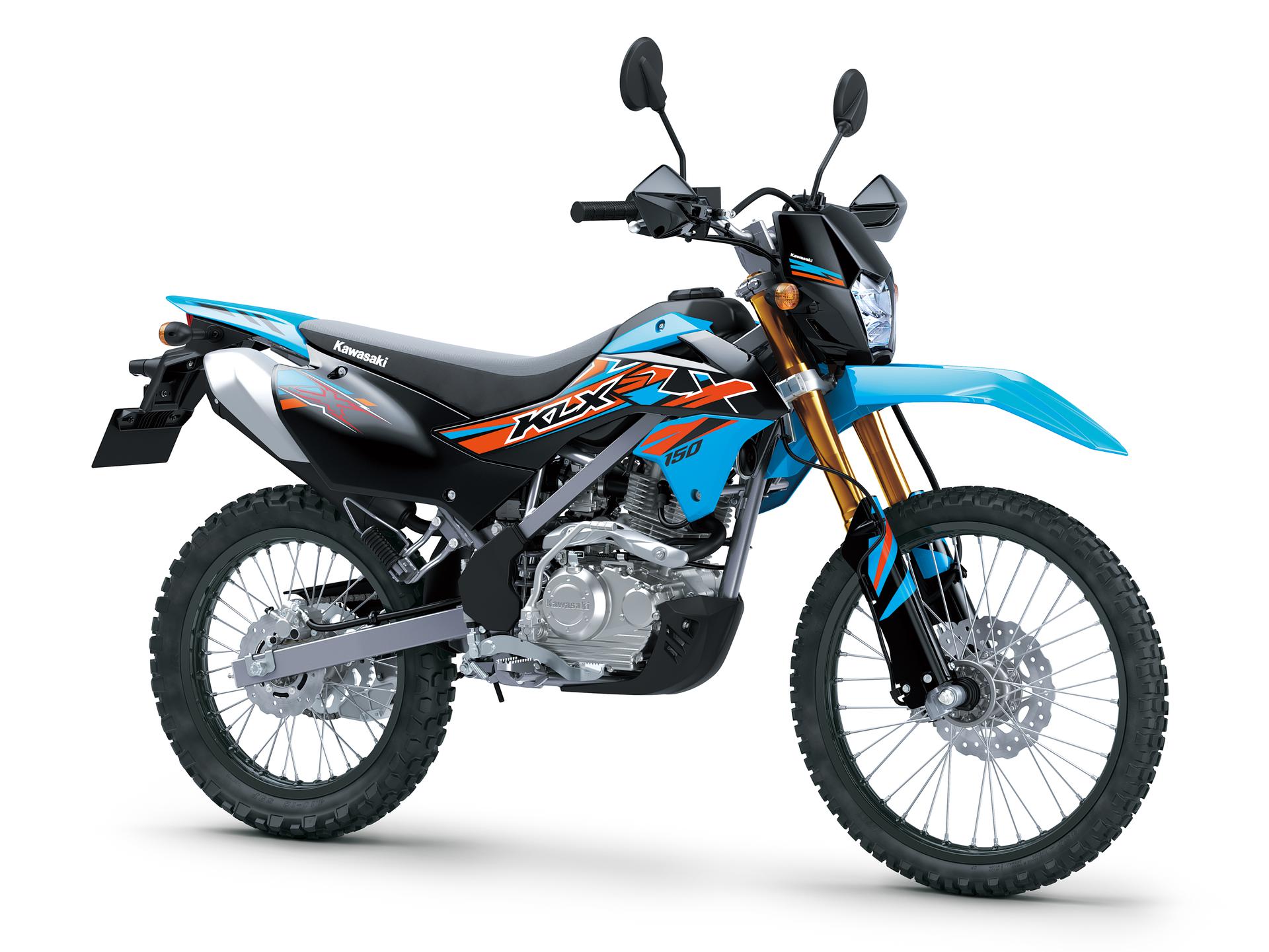

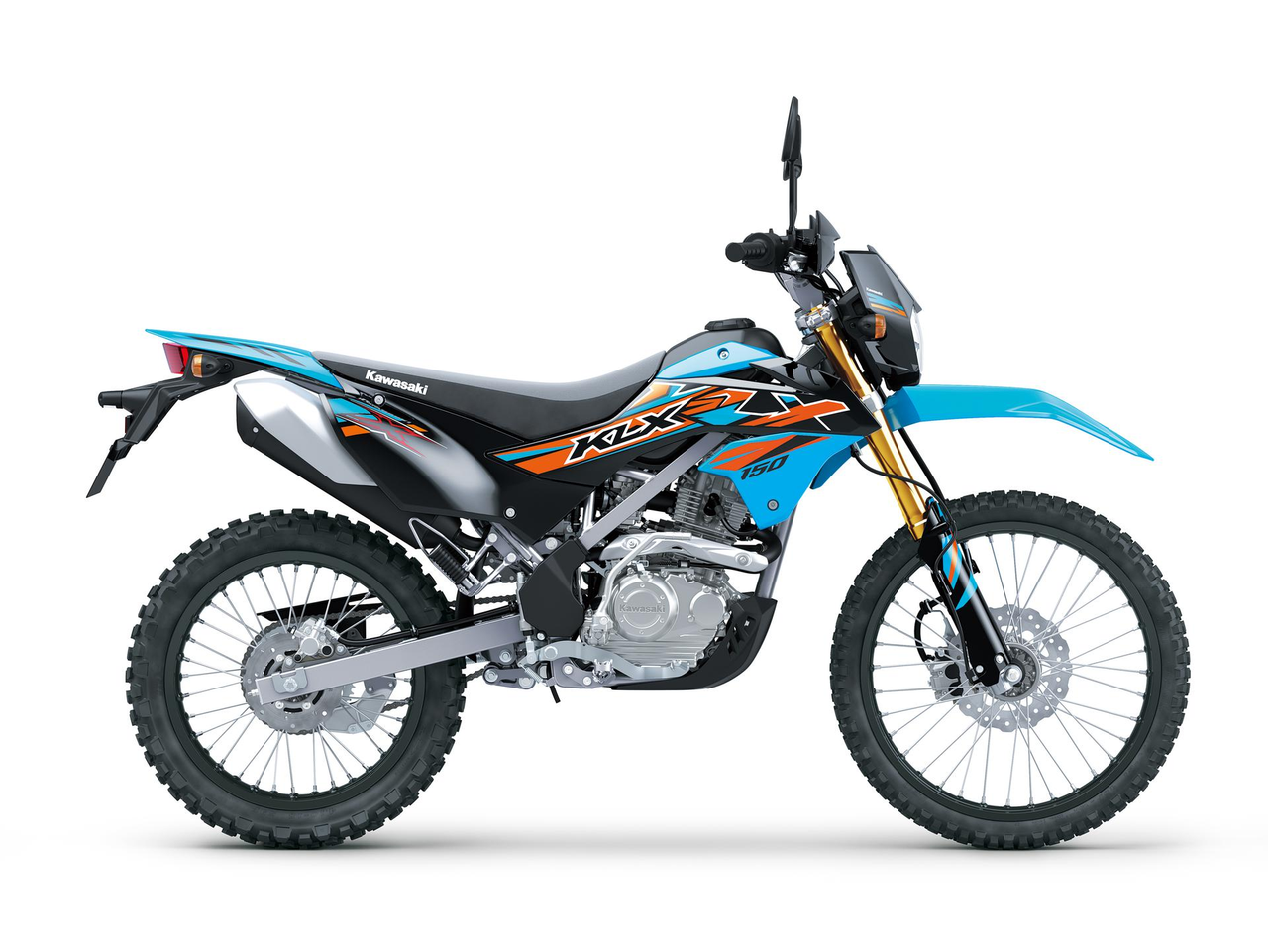

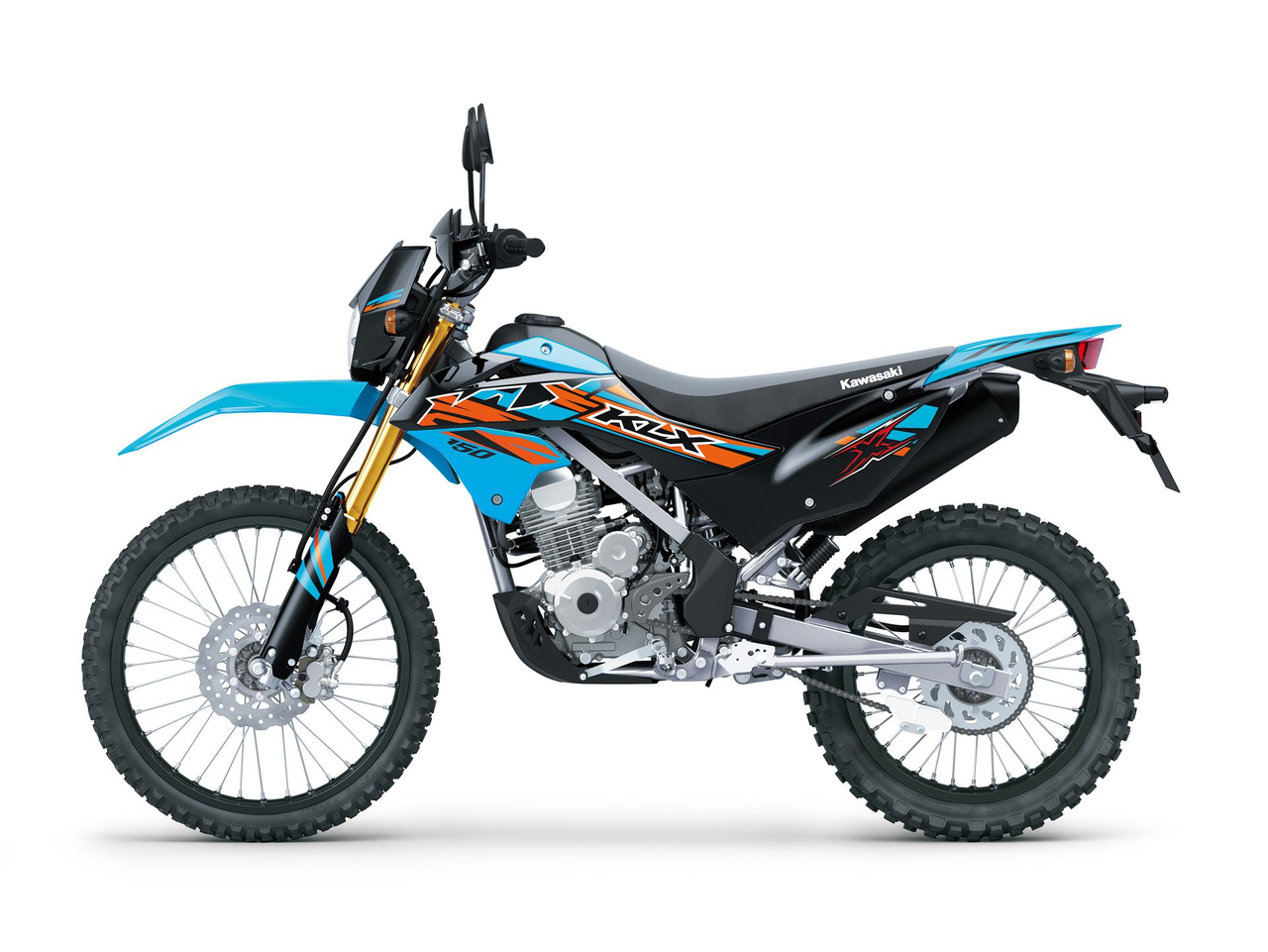

While inheriting the KLX’s design concept of "Aggressive" and"Powerful," the new models pursue a more powerful design withincorporating the latest trends of sharp and sporty styling. A fl at linefrom the shroud to the tail lamp aims for a racy design inspired bythe KX series. “Aggressive” is expressed through a dynamic designthat evokes the model’s high kinematic performance, and “Powerful”is embodied with a massive design that lifts rider’s mood. For the off-road models, the colour variation range has beenexpanded while maintaining the current aggressive graphicsdesign theme, whereas the motard models have graphics furtheraccentuating the sporty modern impression.

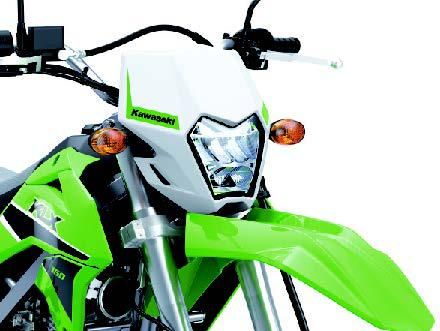

A newly developed LEDheadlamp has beenadded, which achievesboth remarkablebrightness and a thindesign reminiscent ofa full-fl edged enduromotorcycle.
| Engine type | Air-cooled, 4-stroke, single-cylinder |
|---|---|
| Compression ratio | 9.5:1 |
| Valve system | SOHC, 2 valves |
| Bore x stroke | 58.0 x 54.4 mm |
| Displacement | 144 cm³ |
| Fuel system | Carburettor: 24 mm |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric & kick |
| Ignition system | DC-CDI |
| Maximum power | 8.6 kW {12 PS} / 8,000 rpm |
|---|---|
| Maximum torque | 11.3 N•m {1.2 kgf•m} / 6,500 rpm |
| Transmission | 5-speed, return shift |
| Clutch | Wet, multi disc |
| Primary reduction ratio | 2.880 (72/25) |
| Gear ratios 1st | 2.917 (35/12) |
| Gear ratios 2nd | 2.000 (32/16) |
| Gear ratios 3rd | 1.474 (28/19) |
| Gear ratios 4th | 1.182 (26/22) |
| Gear ratios 5th | 1.000 (24/24) |
| Final drive | Chain |
| Final reduction ratio | 3.714 (52/14) |
| Frame type | Perimeter, steel |
|---|---|
| Trail | 110 mm |
| Wheel travel front | 185 mm |
| Wheel travel rear | 192 mm |
| L x W x H | 2,050 x 960 x 1,195 mm |
| Steering angle L/R | 43° / 43° |
| Wheel base | 1,345 mm |
| Ground clearance | 295 mm |
| Fuel capacity | 6.9 litres |
| Seat height | 865 mm |
| Curb mass | 119 kg |
| Front brake type | Single petal disc |
|---|---|
| Front brake diameter | Ø 240 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Single petal disc |
| Rear brake diameter | Ø 190 mm |
| Rear brake caliper type | Single-piston |
| Front suspension type | Inverted fork |
| Front suspension diameter | Ø 35 mm |
| Rear suspension type | Uni-Trak with 5-way spring preload adjustability |
