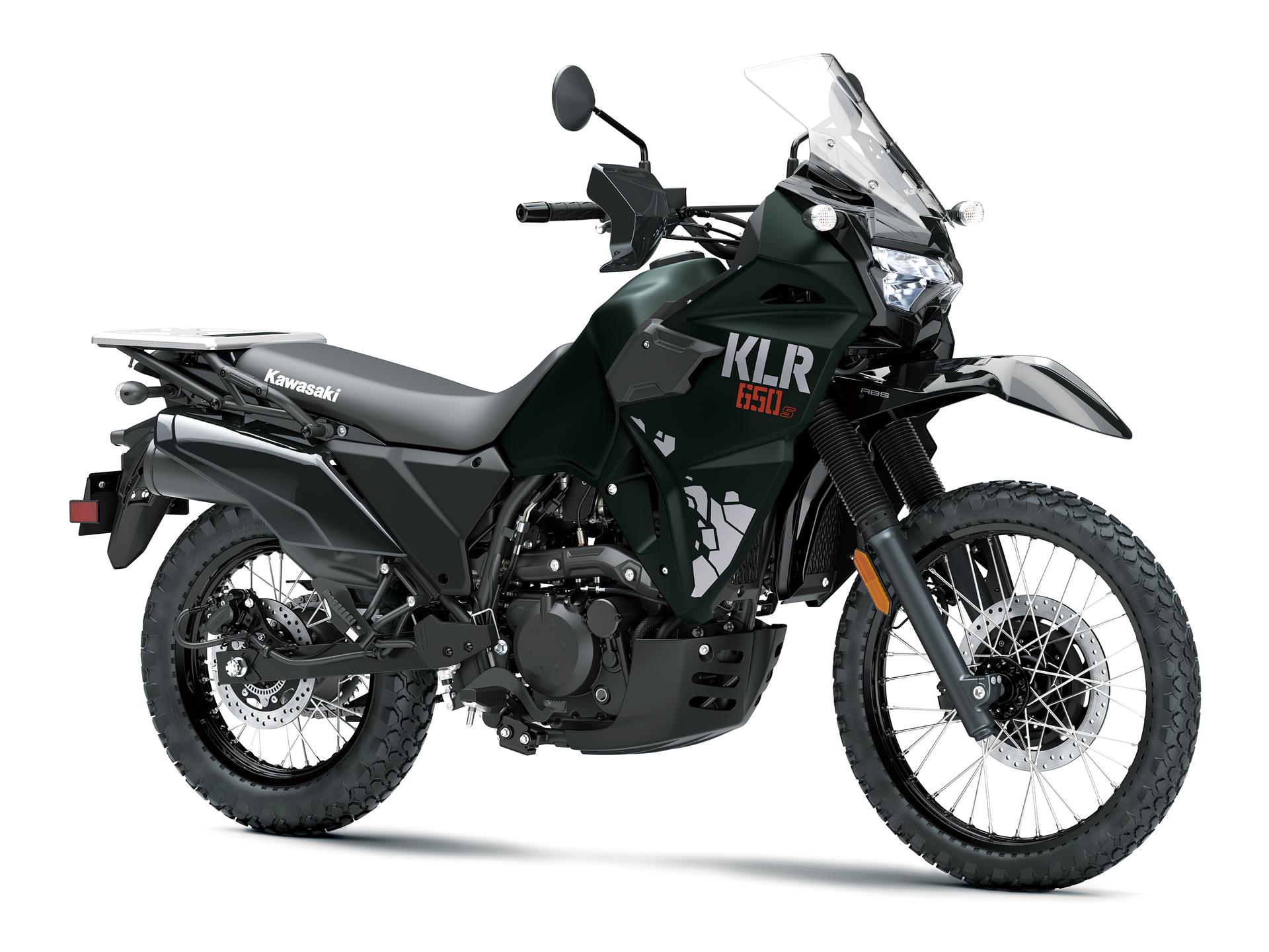

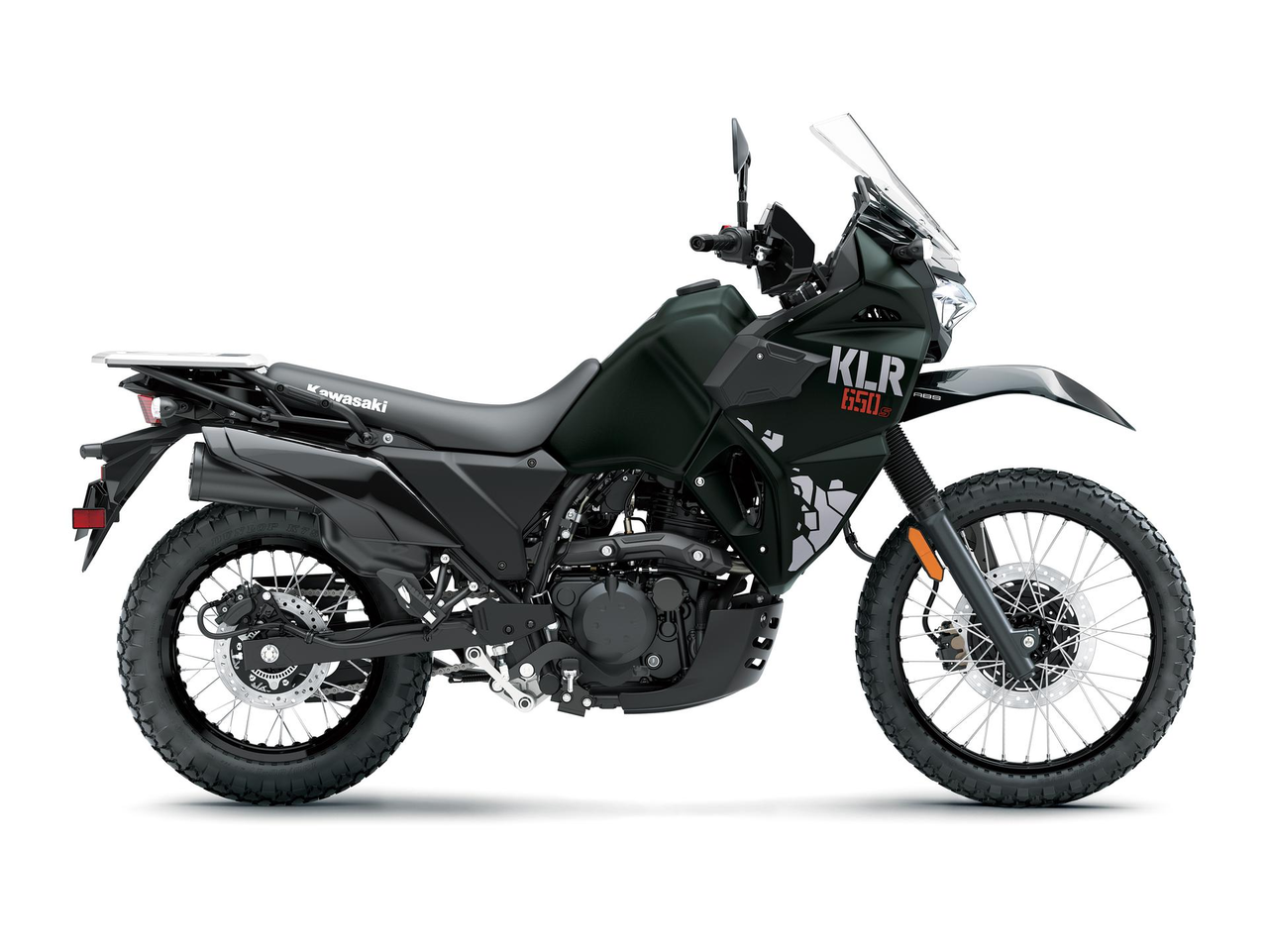

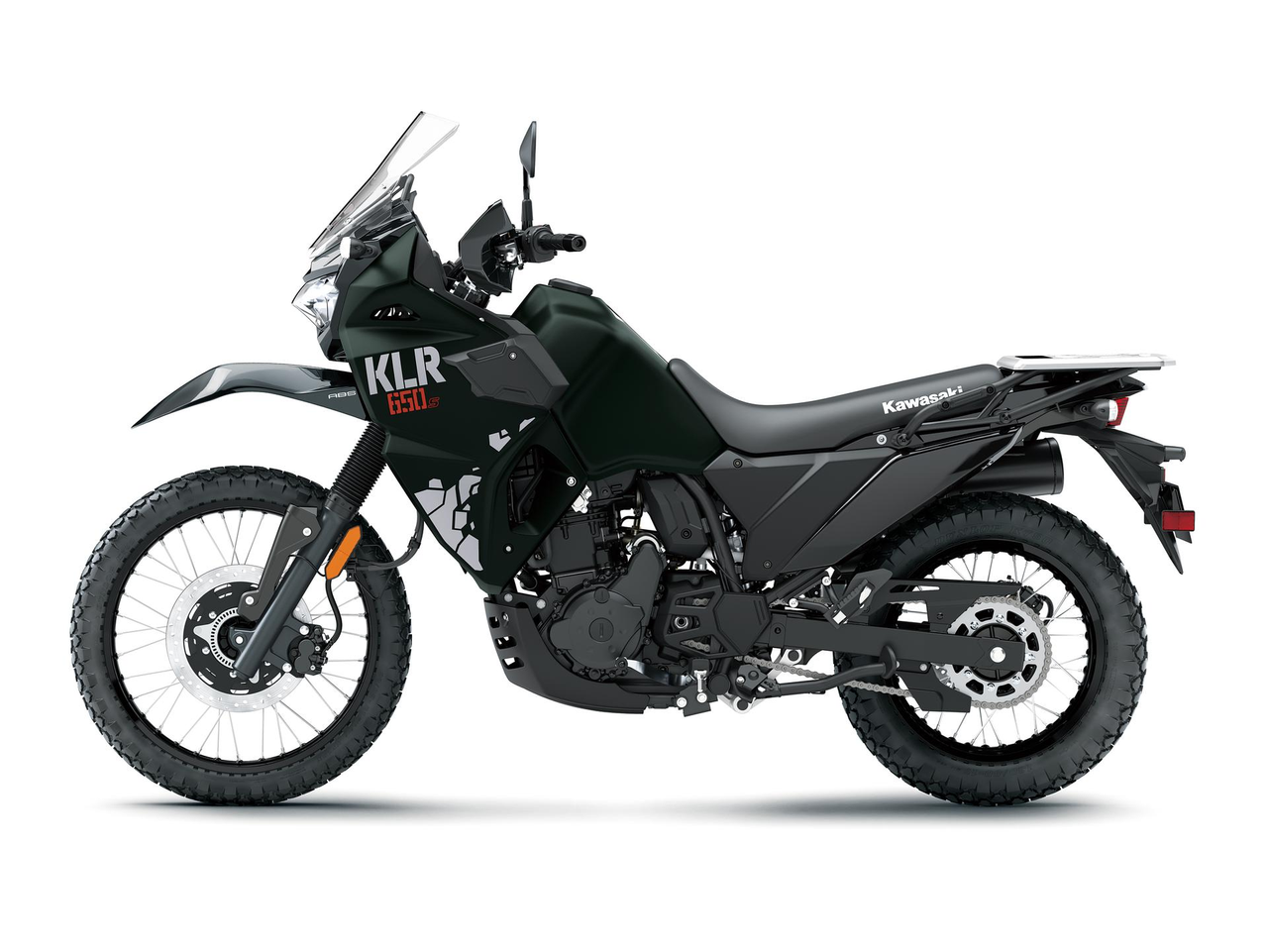

Shroud design and carefully selected colour & graphics strengthen the KLR650’s well-established tough, adventure image.
A key component of the long-running KLR650’s reputation as a trusty steed, the liquid-cooled DOHC single benefits from fuel injection. In addition to the reliable starting and fuel efficiency offered by FI, a generously sized fuel tank enables long ranges between fuel stops. Another feature for the KLR650 is ABS, which adds to riding confidence.
While retaining the highly-acclaimed reliability of its predecessor, the 2022 KLR650 elevates its touring potential to the next level. Frame revisions contribute to composed handling character, and rubber mounts add to rider comfort. The increased comfort and greater carrying capacity facilitate long-distance touring.
| Engine type | Liquid-cooled, 4-stroke, single-cylinder |
|---|---|
| Valve system | DOHC, 4 valves |
| Bore x stroke | 100.0 x 83.0 mm |
| Displacement | 652 cm³ |
| Fuel system | Fuel injection: 40 mm x 1 |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition system | Full transistor digital ignition |
| Maximum power | 30.0 kW {41 PS} / 6,000 rpm |
|---|---|
| Maximum torque | 53.0 N•m {5.4 kgf•m} / 4,500 rpm |
| Transmission | 5-speed, return shift |
| Clutch | Wet, multi disc |
| Primary reduction ratio | 2.273 (75/33) |
| Gear ratios 1st | 2.267 (34/15) |
| Gear ratios 2nd | 1.444 (26/18) |
| Gear ratios 3rd | 1.136 (25/22) |
| Gear ratios 4th | 0.955 (21/22) |
| Gear ratios 5th | 0.792 (19/24) |
| Final drive | Chain |
| Final reduction ratio | 2.867 (43/15) |
| Frame type | Double-cradle, high-tensile steel |
|---|---|
| Trail | 118 mm |
| Wheel travel front | 170 mm |
| Wheel travel rear | 177 mm |
| Tyre, front | 90/90-21 M/C 54S |
| Tyre, rear | 130/80-17 M/C 65S |
| L x W x H | 2,255 x 970 x 1,430 mm |
| Steering angle L/R | 44° / 44° |
| Wheel base | 1,515 mm |
| Ground clearance | 185 mm |
| Fuel capacity | 23.0 litres |
| Seat height | 815 mm |
| Curb mass | 209 kg |
| Front brake type | Single disc |
|---|---|
| Front brake diameter | Ø 300 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Single disc |
| Rear brake diameter | Ø 240 mm |
| Rear brake caliper type | Dual-piston |
| Front suspension type | Telescopic fork |
| Front suspension diameter | Ø 41 mm |
| Rear suspension type | Uni-Trak, gas-charged shock, adjustable rebound damping, and spring preload adjustability |
