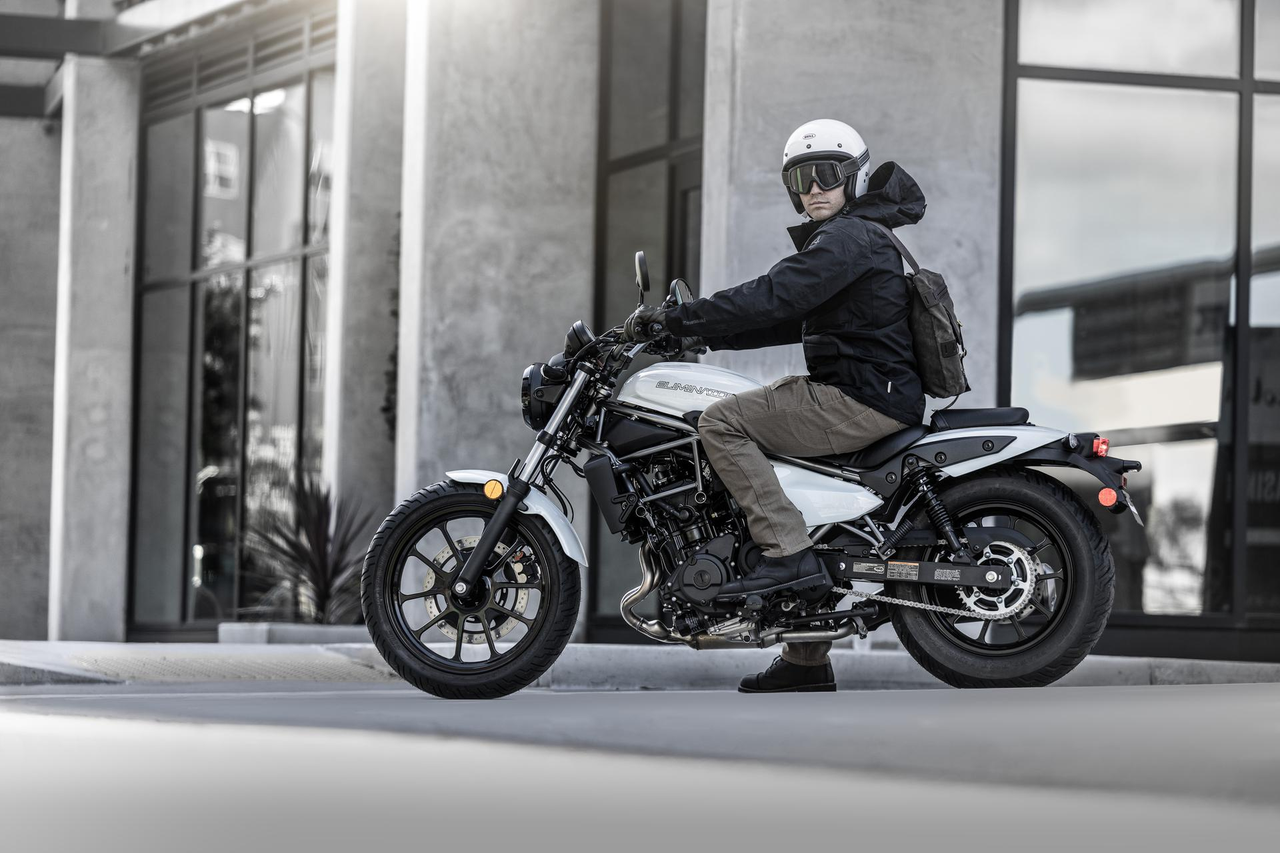

Belying the Eliminator’s long and low design and imposing bodywork, efforts made to keep weight low result in a lightweight chassis. Low-effort manoeuvrability contributes to rider confidence and helps reduce riding stress.

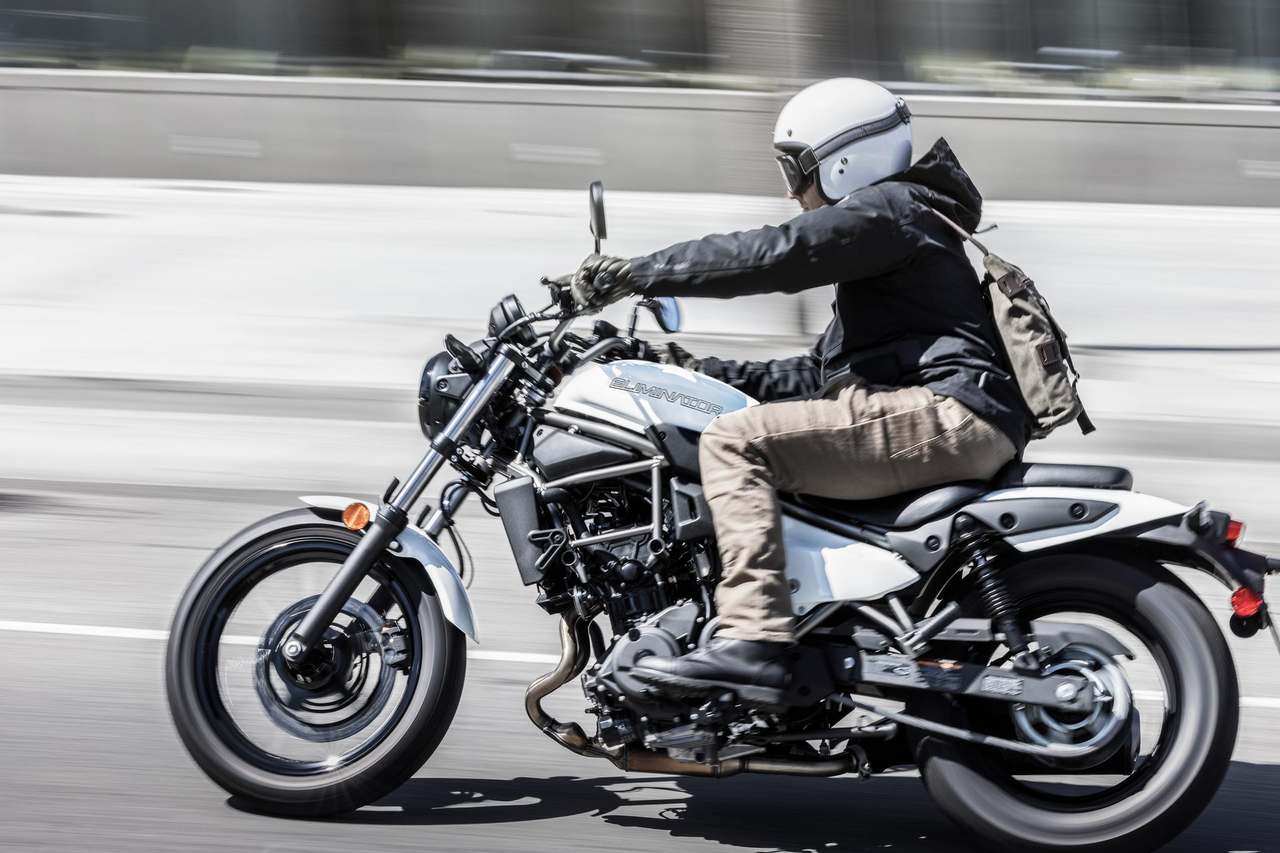

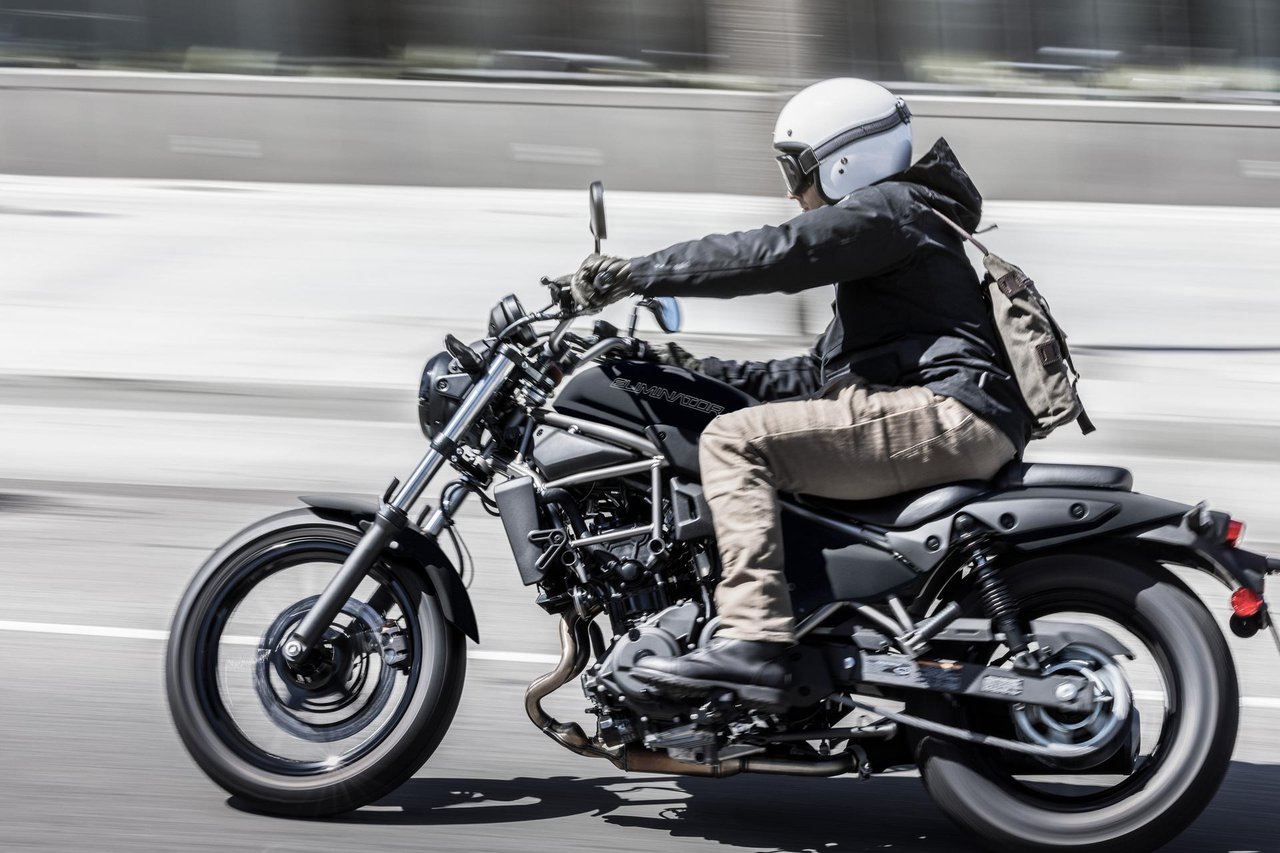

The Eliminator’s Parallel Twin engine offers strong low-end torque, greatly benefiting low-speed control and manoeuvrability, and contributing to low-stress everyday riding. At highway speeds, its strong power and linear response make its Ninja lineage apparent.

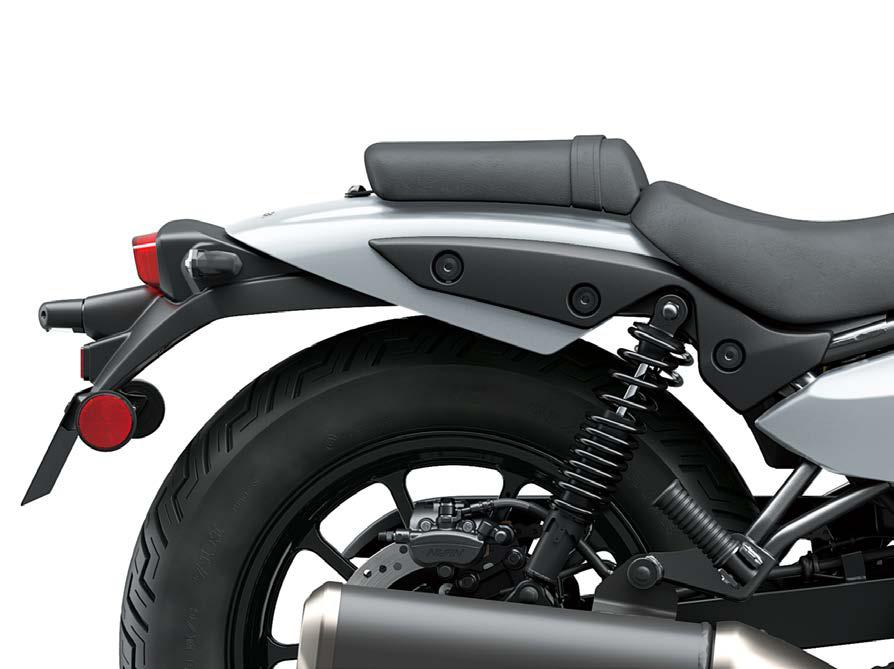

In addition to contributing to ride comfort and natural handling, twin rear shocks are reminiscent of the style of Kawasaki’s orthodox motorcycles.
Inspired by the Ninja 400’s highperformance trellis frame, the hightensile steel construction achieves the Eliminator’s low seat height while maintaining the active performance potential of its sportier brother.

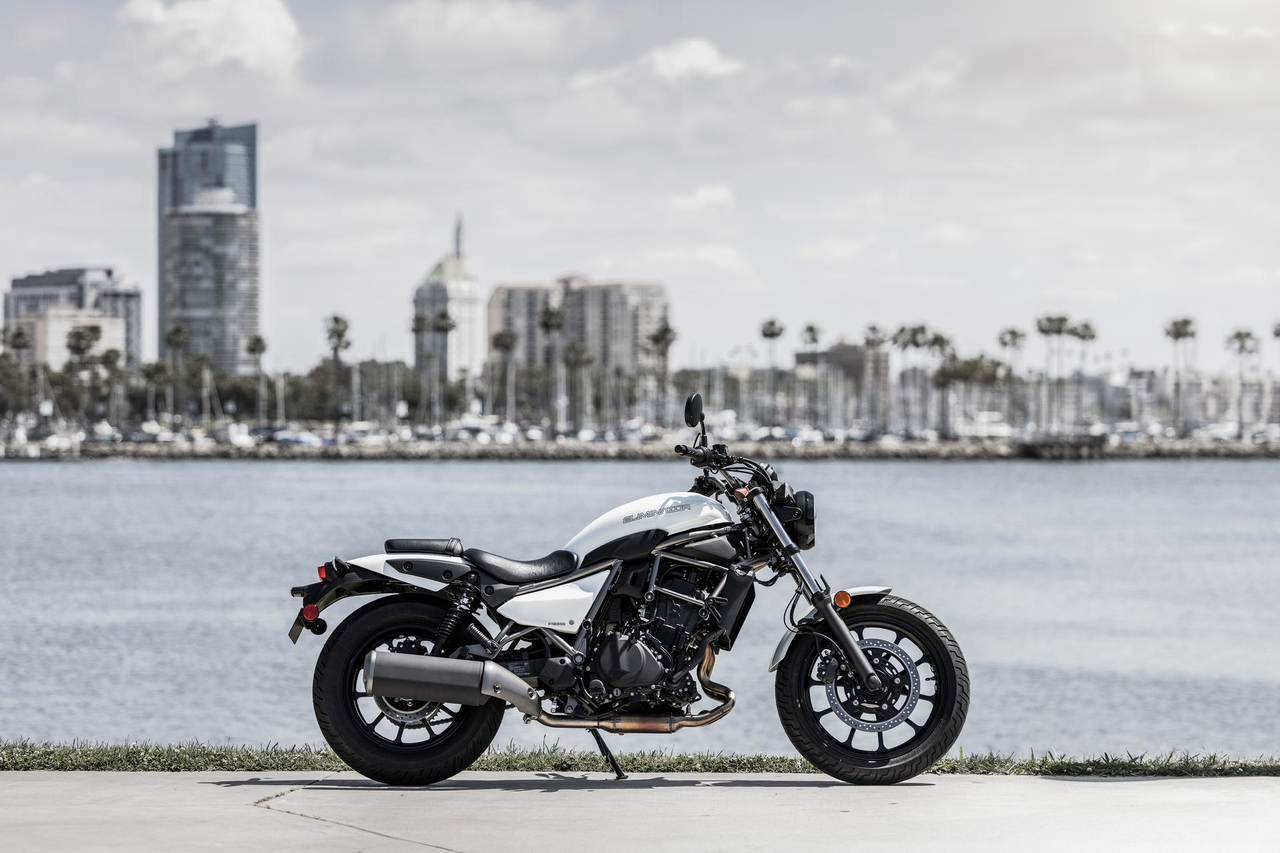

Combining a long wheelbase with 18” front and 16” rear wheels helps achieve the low head position and long and low style.
Complementing the long and low style, chassis geometry was carefully selected to achieve light, natural handling. The Eliminator’s easy handling character adds to rider confidence and contributes to stress-free riding.

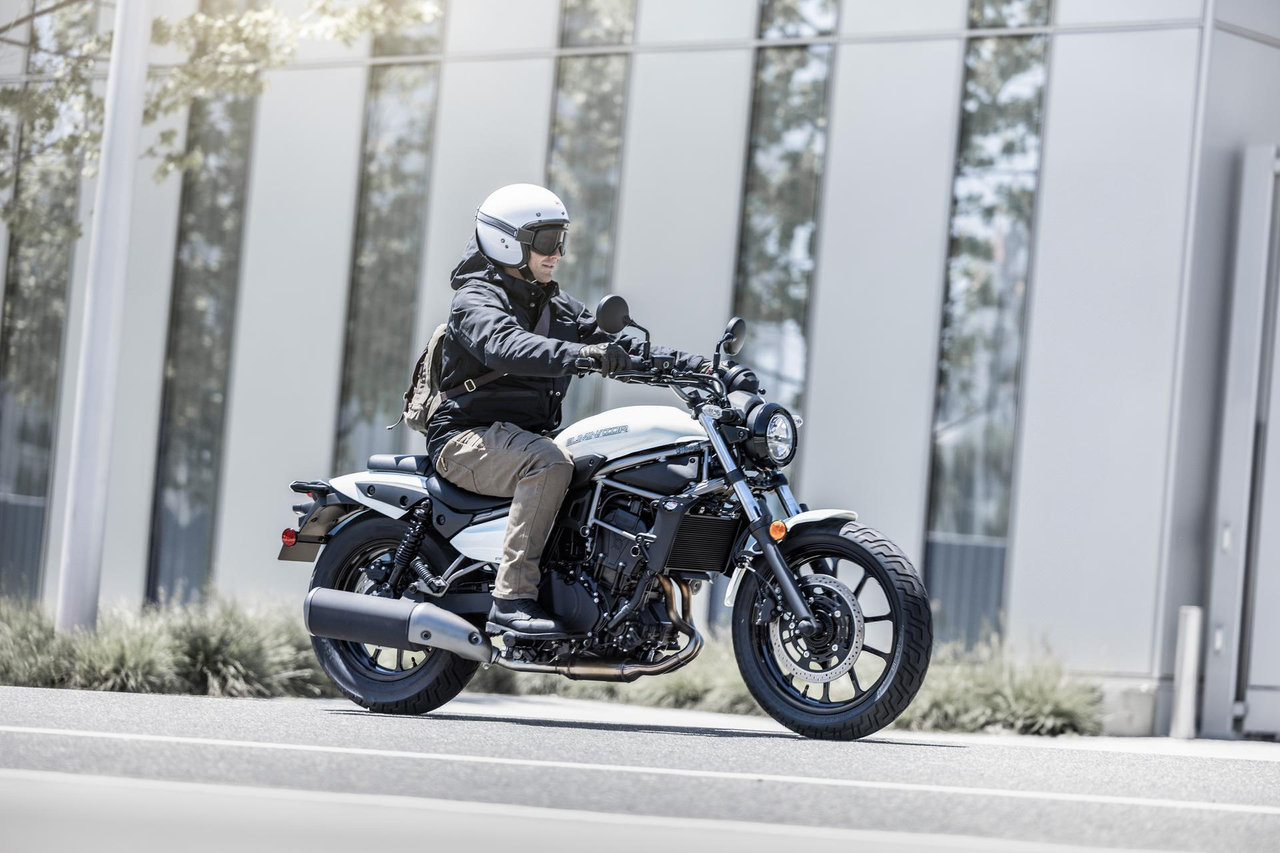

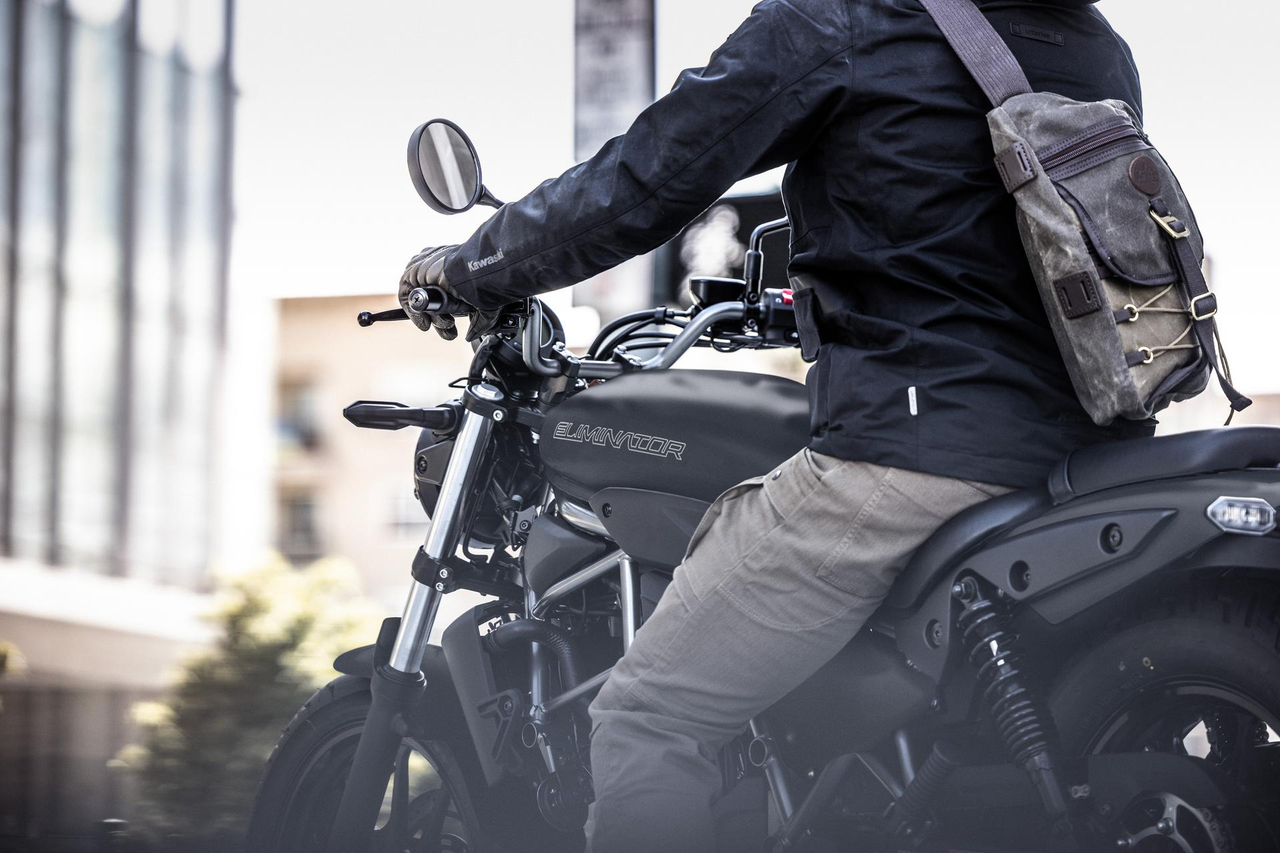

A natural riding position with handle grips located where your arms naturally extend and footpegs positioned so that your legs do not feel cramped offers rider reassurance and contributes to stress-free everyday riding.

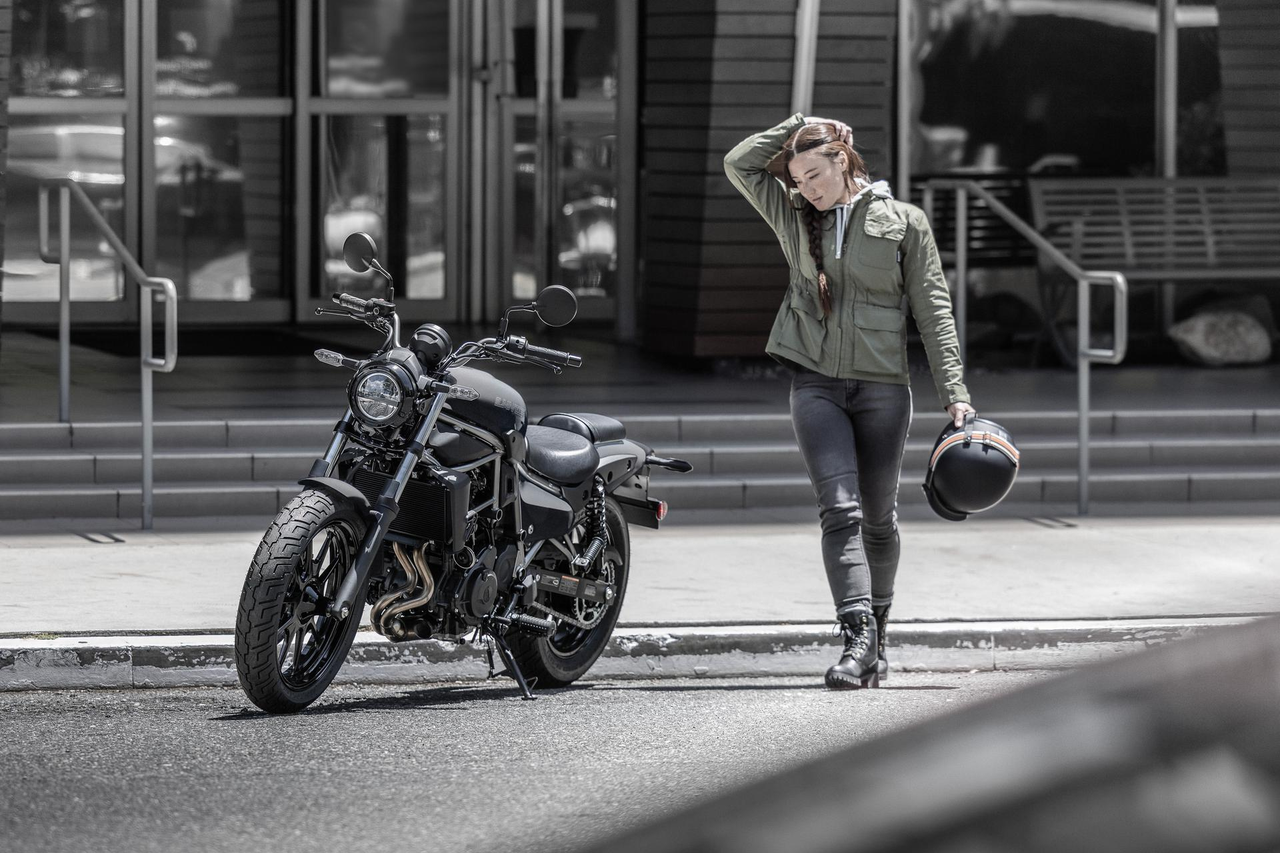

At 735 mm, the Eliminator’s seat height is the lowest of Kawasaki’s 250-500cc on-road models, contributing to a reassuring reach to the ground. Accessory High and Low seats enable a wide range of riders to enjoy the Eliminator with confidence and comfort.

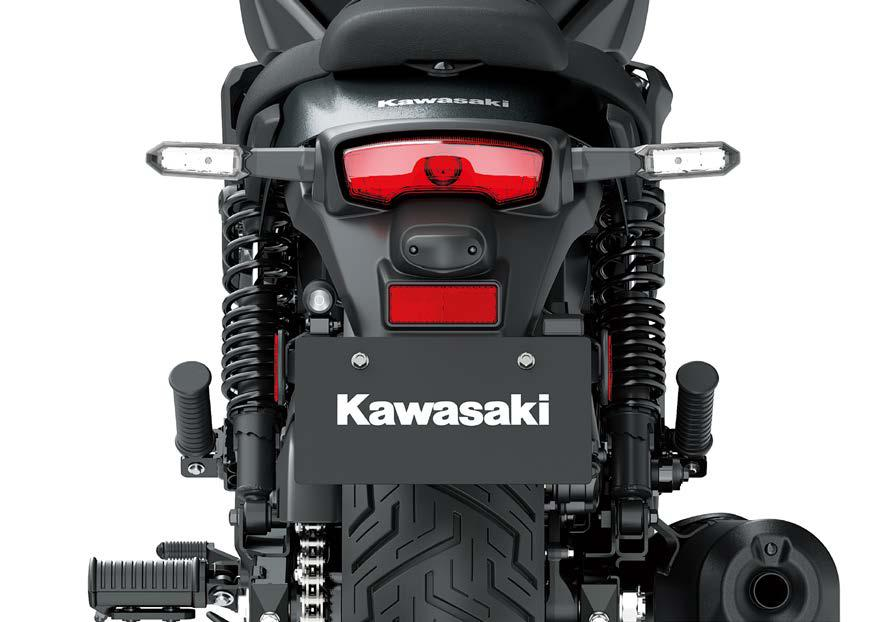

While the LED taillight evokes the style of the original Eliminator, the tail design is original. Thin, with its slashcut lower line angling sharply upwards, it contributes to the active performance image.

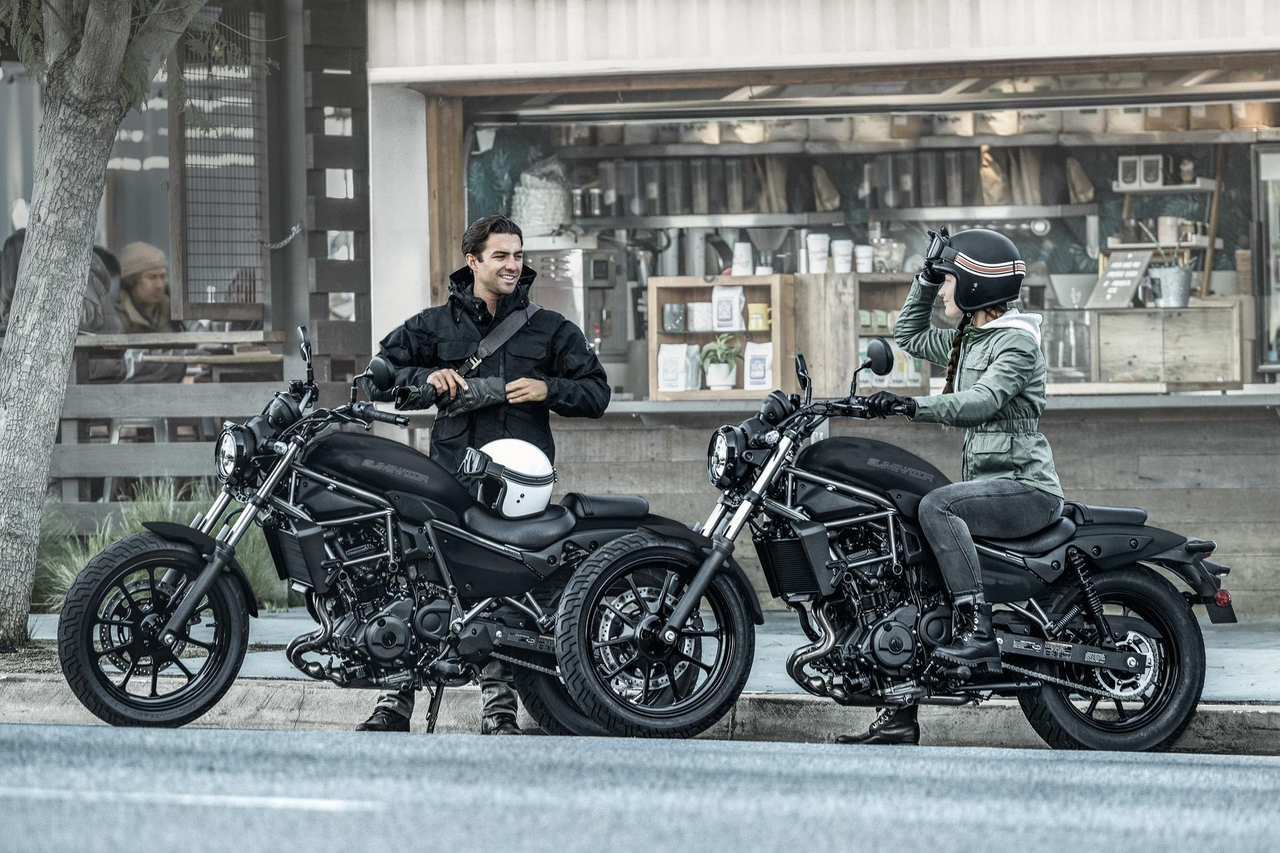

Ample power, a comfortable pillion seat, and an ergonomic accessory grab bar make it easy to share the Eliminator experience with a friend.

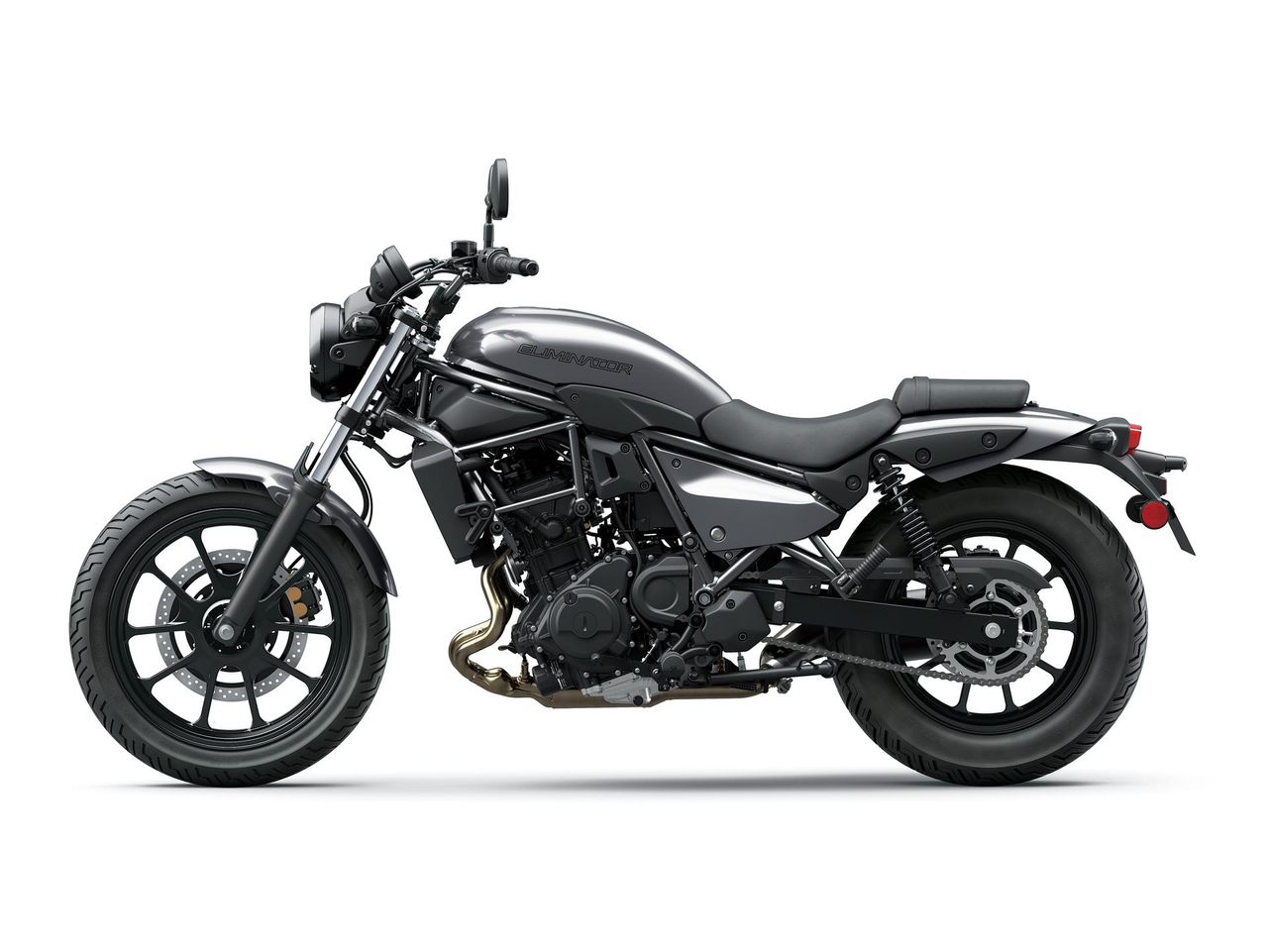

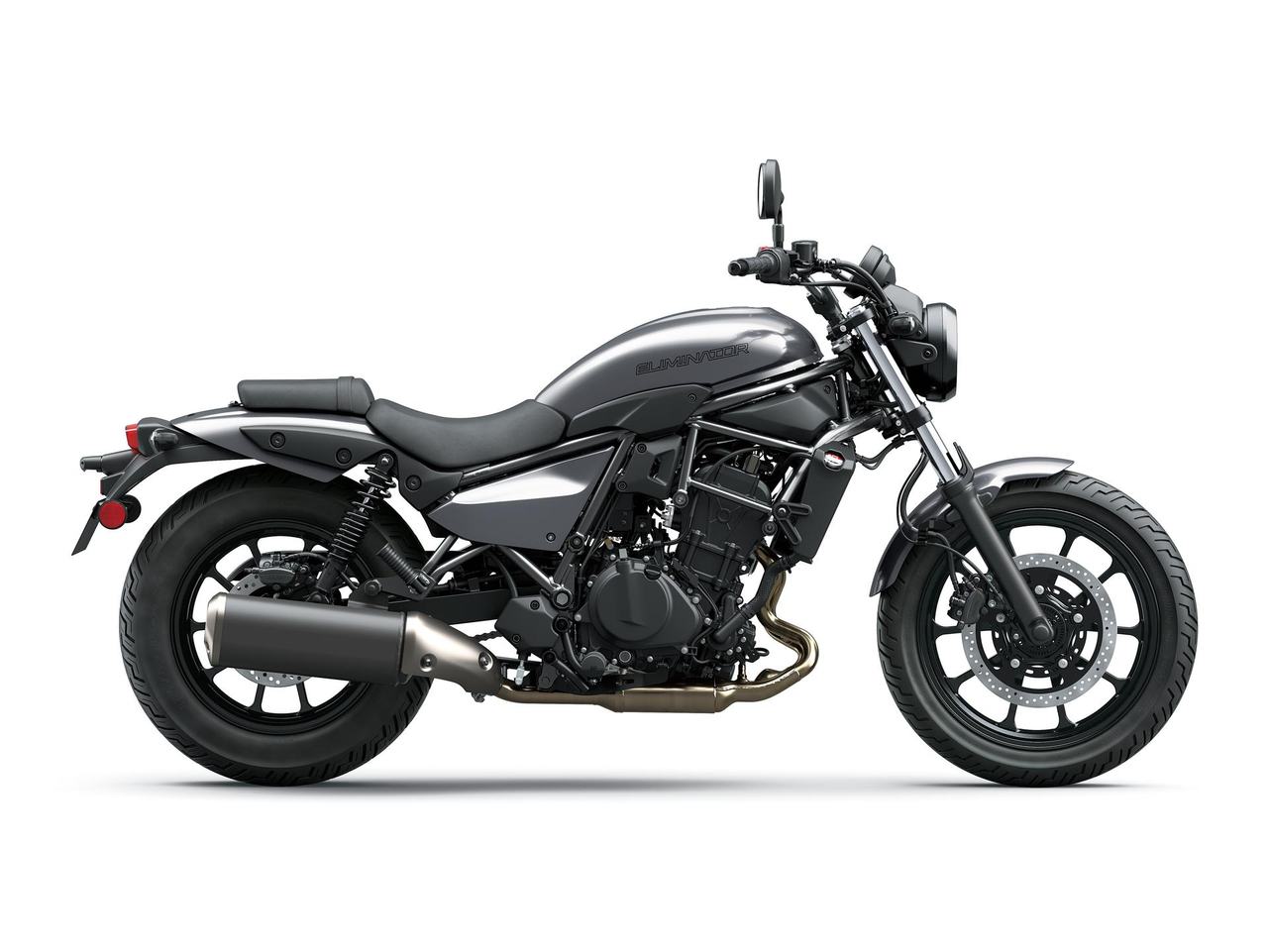

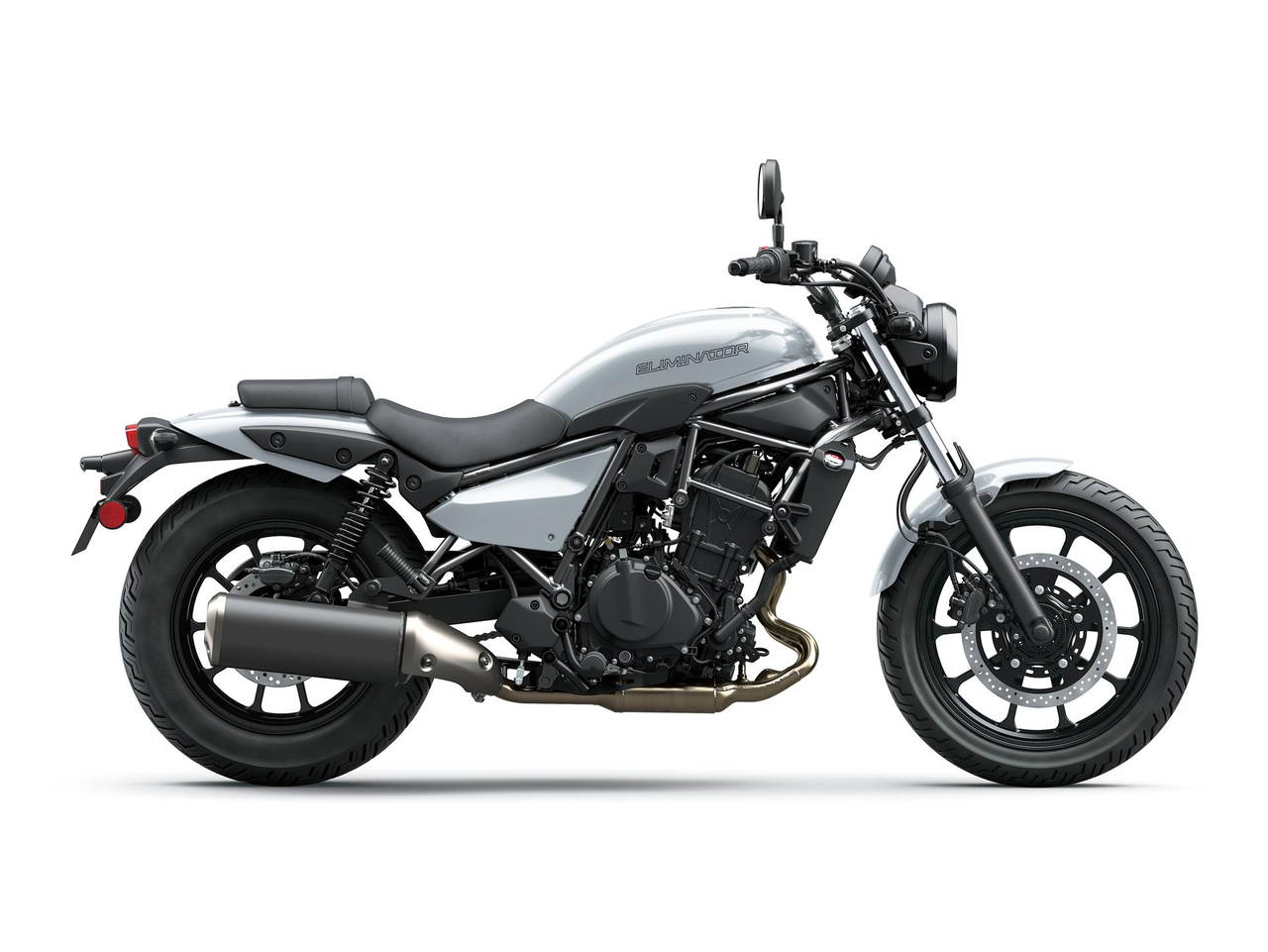

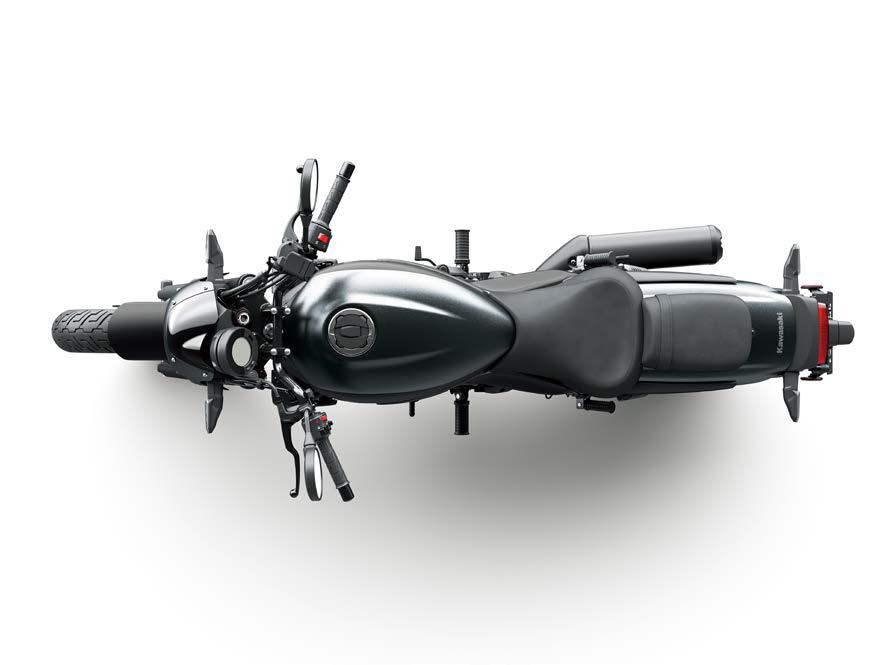

A long and low design with elegant proportions is, created by the vertically thin fuel tank and the horizontal, lines evident from the head pipe to the original tail. The, design of the impressive, mid-class sized body suggests, a balance of active performance and composure.

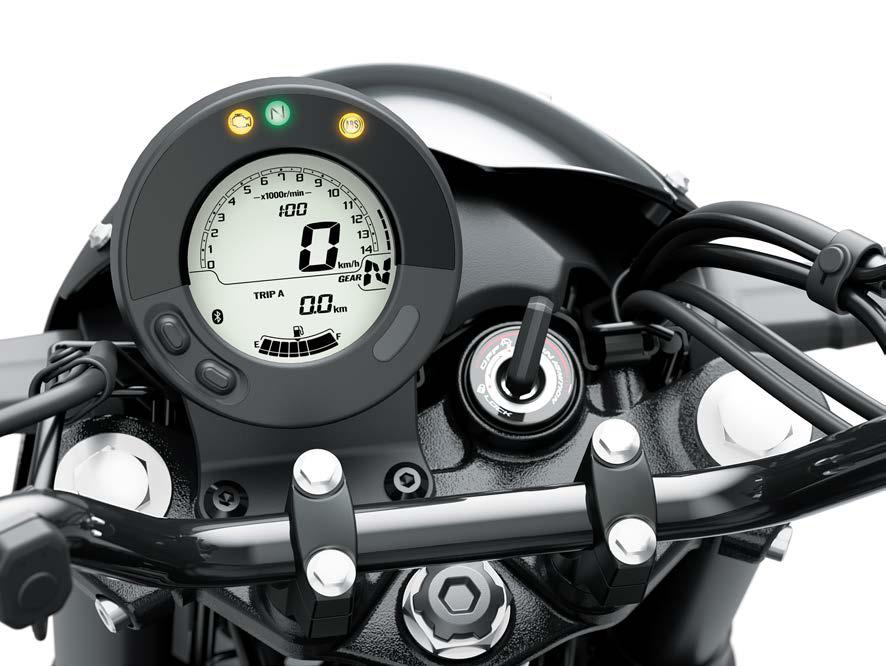

Compact, round, all-digital LCD instrument panel offers a modern touch that complements the Eliminator’s authentic style. The highly legible layout includes a barstyle tachometer and gear position indicator – visible reminders of the Eliminator’s active riding potential. Smartphone connectivity enables riders to access instrument functions for an enhanced motorcycling experience.
Based on racing technology, the Assist & Slipper Clutch acts as both a back-torque limiter and a self-servo mechanism that enables a lighter clutch lever pull.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
| Engine type | Liquid-cooled, 4-stroke, parallel twin |
|---|---|
| Compression ratio | 11.3:1 |
| Valve system | DOHC, 8 valves |
| Bore x stroke | 70.0 x 58.6 mm |
| Displacement | 451 cm³ |
| Fuel system | Fuel injection: 32 mm x 2 |
| Lubrication | Forced lubrication, wet sump |
| Ignition system | Digital |
| Maximum power | 38.3 kW {52 PS} / 10,000 rpm |
|---|---|
| Maximum torque | 42.6 N•m {4.3 kgf•m} / 7,500 rpm |
| Fuel consumption | 3.0 l/100km |
| Transmission | 6-speed, return shift |
| Clutch | Wet, multi disc |
| Primary reduction ratio | 2.029 (69/34) |
| Gear ratios 1st | 2.929 (41/14) |
| Gear ratios 2nd | 2.056 (37/18) |
| Gear ratios 3rd | 1.619 (34/21) |
| Gear ratios 4th | 1.333 (32/24) |
| Gear ratios 5th | 1.154 (30/26) |
| Gear ratios 6th | 1.037 (28/27) |
| Final drive | Chain |
| Final reduction ratio | 3.071 (43/14) |
| Frame type | Trellis, high-tensile steel |
|---|---|
| Trail | 121 mm |
| Wheel travel front | 120 mm |
| Wheel travel rear | 90 mm |
| L x W x H | 2,250 x 785 x 1,100 mm |
| Steering angle L/R | 35° / 35° |
| Wheel base | 1,520 mm |
| Ground clearance | 150 mm |
| Fuel capacity | 13.0 litres |
| Seat height | 735 mm |
| Curb mass | 176 kg |
| Front brake type | Single disc |
|---|---|
| Front brake diameter | Ø 310 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Single disc |
| Rear brake diameter | Ø 240 mm |
| Rear brake caliper type | Dual-piston |
| Front suspension type | Telescopic fork |
| Front suspension diameter | Ø 41 mm |
| Rear suspension type | Twin shocks |
